Doebritz Chocolate Star Discharge Valve: ATEX Zone 20/21, 316L, 0.1mm Clearance for Confectionery Plants

Product Summary: Precision Airlock for Hygienic Chocolate & Cocoa Lines

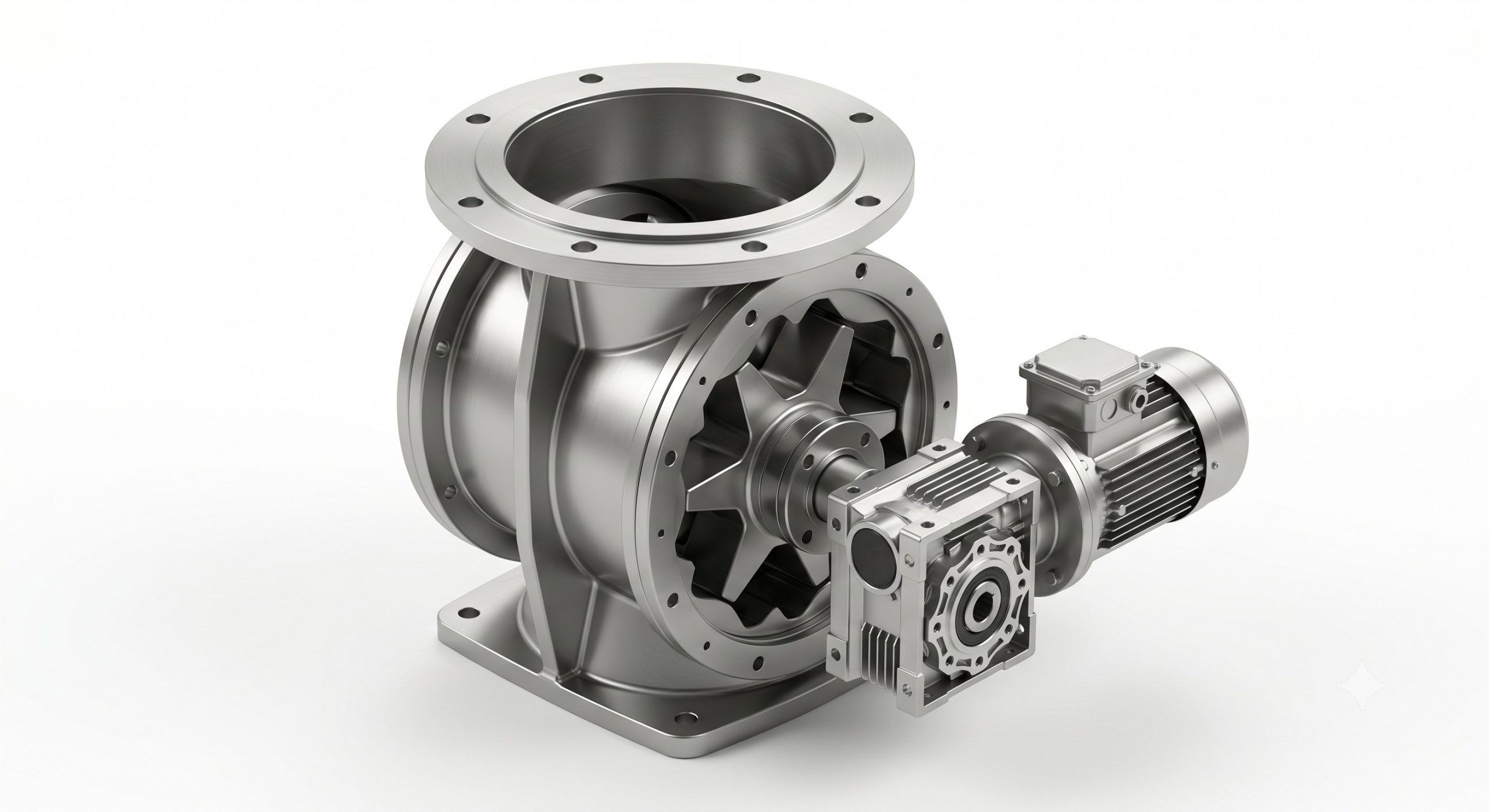

Doebritz presents the DBR-1237 series Chocolate Star Discharge Valve—a heavy-duty rotary airlock feeder engineered specifically for confectionery, cocoa processing, and high-fat powder applications. Designed with a quick-release demountable body (no special tools required), this hygienic rotary valve guarantees minimal air leakage, ATEX Zone 20/21 explosion compliance, and mirror-finish 316L stainless steel surfaces (Ra≤0.4μm). Ideal for gravity discharge from silos, pneumatic conveying, and loss-in-weight metering of chocolate mix, cocoa powder, sugar dust, and protein blends. Backed by Doebritz global OEM manufacturing and CNC precision machining, the DBR-1237 provides rotor-to-housing clearances of 0.1–0.2mm, reducing gas bypass and ensuring volumetric efficiency above 98%.

Why Plant Sourcing Chooses Doebritz Chocolate Star Discharge Valve

For B2B buyers and engineering procurement teams, the Doebritz Chocolate Star Discharge Valve eliminates three common pain points: product contamination, air leakage instability, and lengthy cleaning downtime. Here’s why leading confectionery plants standardize on Doebritz:

• Minimal Air Leakage & Locking Efficiency: Precision-ground rotor tips and housing bore achieve 0.1–0.2mm radial clearance, reducing air leakage to <0.5 m³/h at 0.6 bar differential. Stable pressure drop across the rotary valve ensures consistent dense/dilute phase conveying.
• ATEX Certified Explosion Safety: Full compliance with Zone 20/21/22 (internal/external). Flameproof construction, 16bar pressure shock resistance, anti-static PTFE lip seals, and earth bonding lug. Safe for explosive sugar dust, cocoa dust, and fine milk powder.

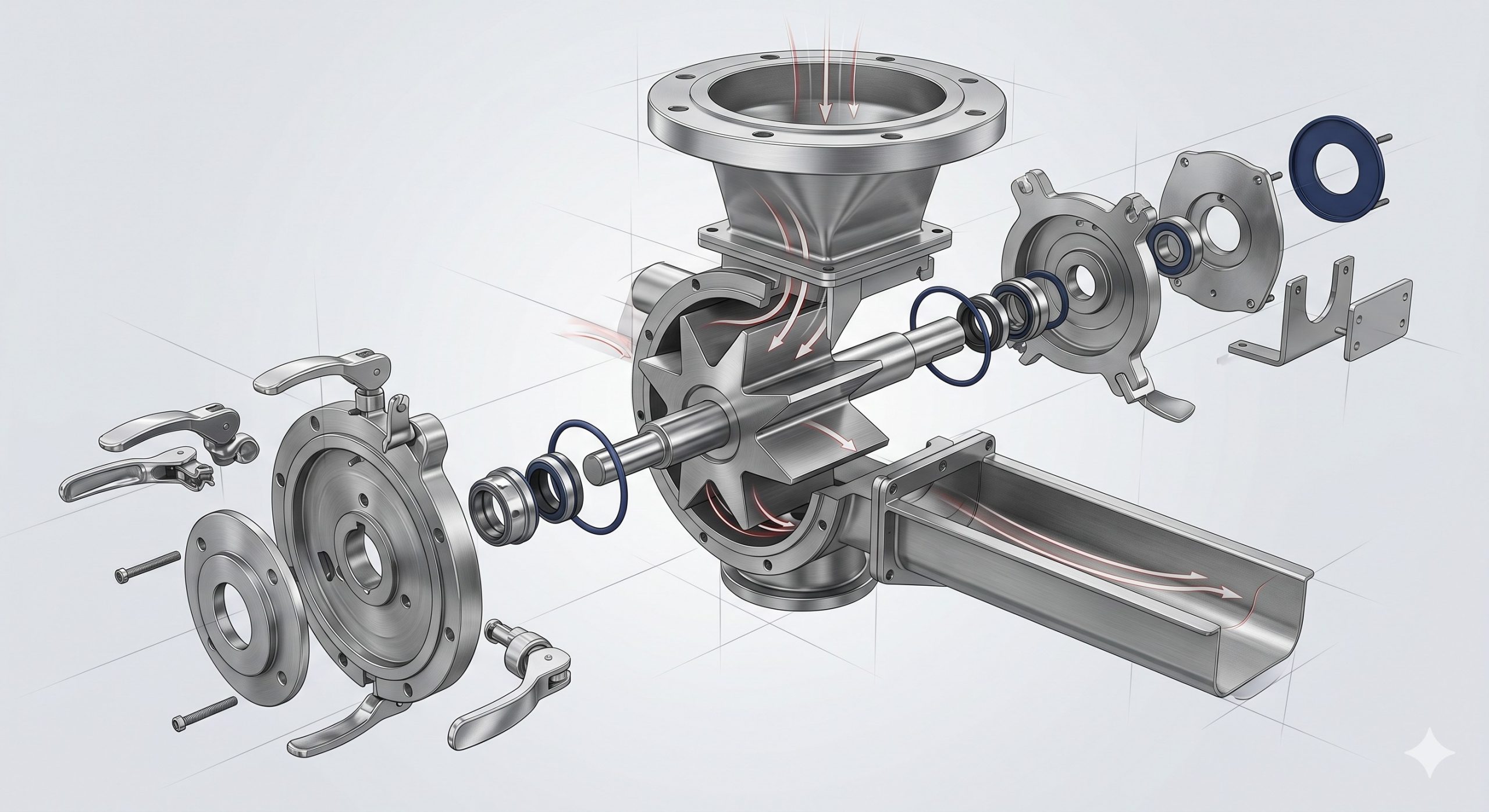

• Hygienic Quick-Clean Demountable: No special tools required—clamp bands or swing bolts allow full rotor exposure within 5 minutes. Supports manual wash-down, online CIP (clean-in-place), and WIP (wash-in-place) with visual inspection. No dead zones, no cross-contamination.
• Superior Material & Surface Finish: Contact parts in SUS316L (AISI 316L), mirror electropolished (Ra≤0.4μm) to prevent fat/oil adhesion. Optional tungsten carbide coating for abrasive ingredients like crystalline sugar or salt. GMP and FDA compliant.
• Direct OEM Manufacturing Benefits: Doebritz controls all critical CNC machining, balancing, and pressure testing in-house. Short lead times, custom flanges (DIN/ANSI/JIS), gearmotor options (servo/VFD), and full material certs (3.1 EN 10204).

Housing & Rotor Engineering: Built for Chocolate & Hygienic Powders

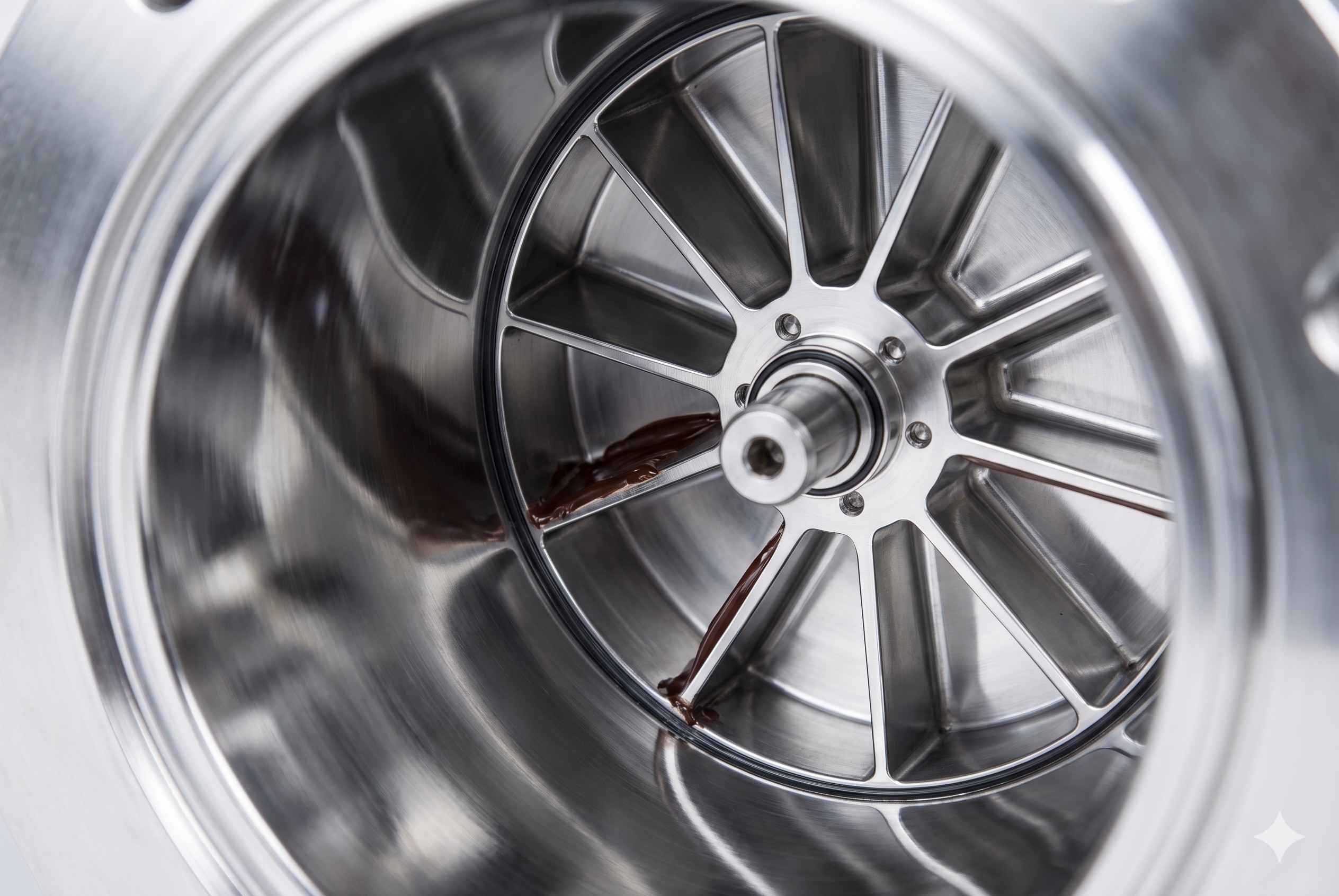

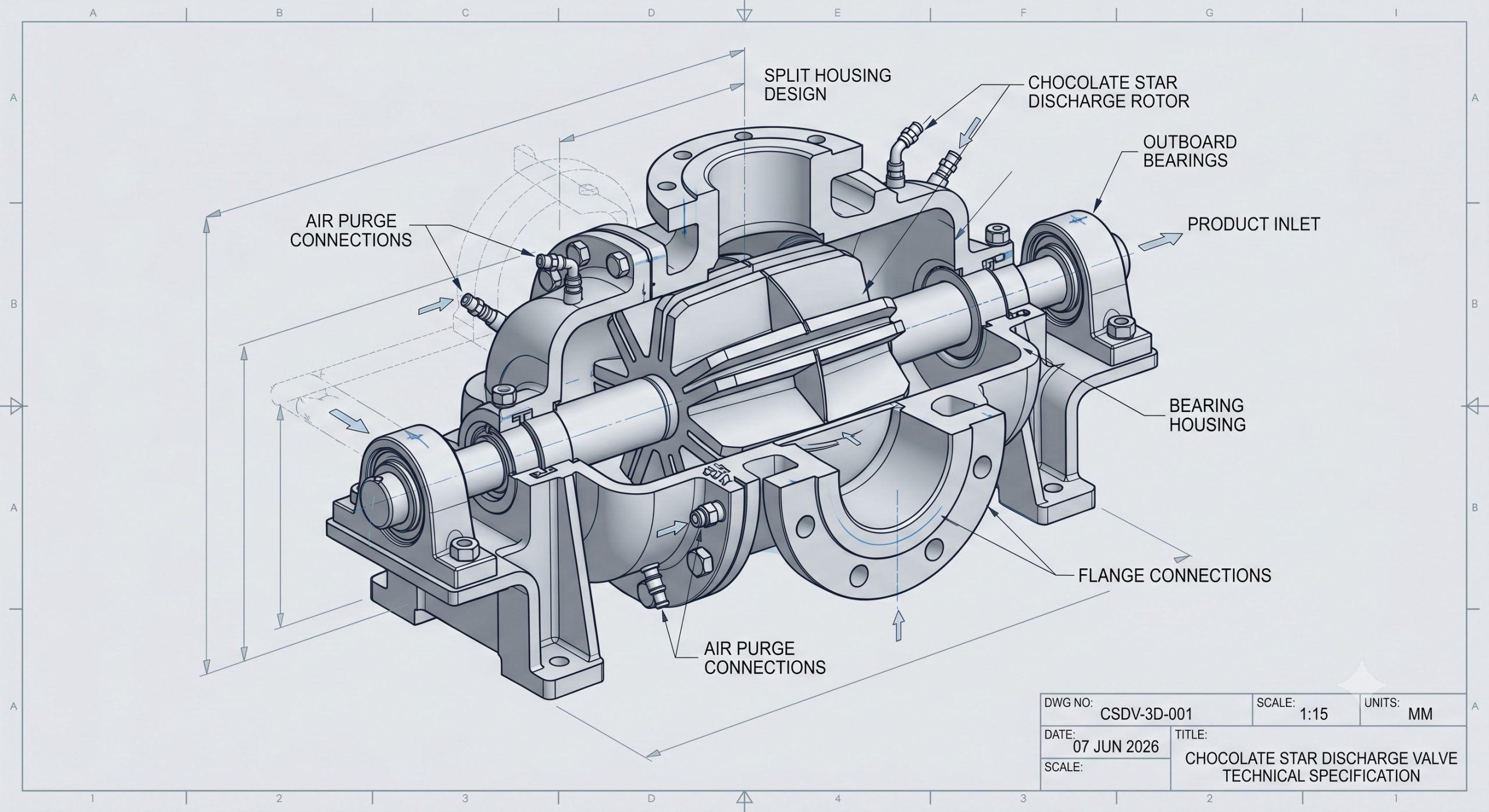

Doebritz engineers the Chocolate Star Discharge Valve using a one-piece cast housing with smooth internal contours—no ledges or crevices. The eight-vane closed rotor design minimizes product impact while maximizing filling efficiency for sticky or fatty powders. For chocolate crumb, cocoa nibs, or compound coatings, the valve can be equipped with a vented rotor option to prevent air entrapment and flush feeding. Outboard bearing supports isolate the product zone from lubricants, with triple lip seals and an air-purge connection to prevent dust ingress. All machining is performed on Doebritz-owned 5-axis CNC centers to maintain radial and face runout below 0.05mm, ensuring years of trouble-free operation in 24/7 confectionery lines.

Specification	Detail
Valve Model	DBR-1237 (Chocolate Star Discharge Valve)
Body / Rotor Material	SUS316L (AISI 316L), mirror electropolished Ra≤0.4μm
Rotor Design	8-vane closed rotor, optional vented rotor
Rotor-to-Housing Clearance	0.1–0.2 mm (CNC precision matched)
Shaft Seals	PTFE lip seals + air purge (5–15 psi)
Differential Pressure	1.0 bar standard (2.0 bar optional)
Temperature Range	-15°C to +120°C (material); water jacket optional
ATEX Certification	II 1/2 D c T°C (Zone 20/21) / II 2 G c T4
Inlet/Outlet Flange	DN100 / DN150 / DN200 (DIN, ANSI, Tri-clamp custom)
Drive Options	Gearmotor, servo, VFD-ready with encoder mount
Cleaning	Quick-release manual wash, CIP, WIP
Certifications	CE, TÜV, ATEX, FDA 21 CFR, 3.1 material certs

Heavy-Duty Application Scenarios in Confectionery & Food Processing

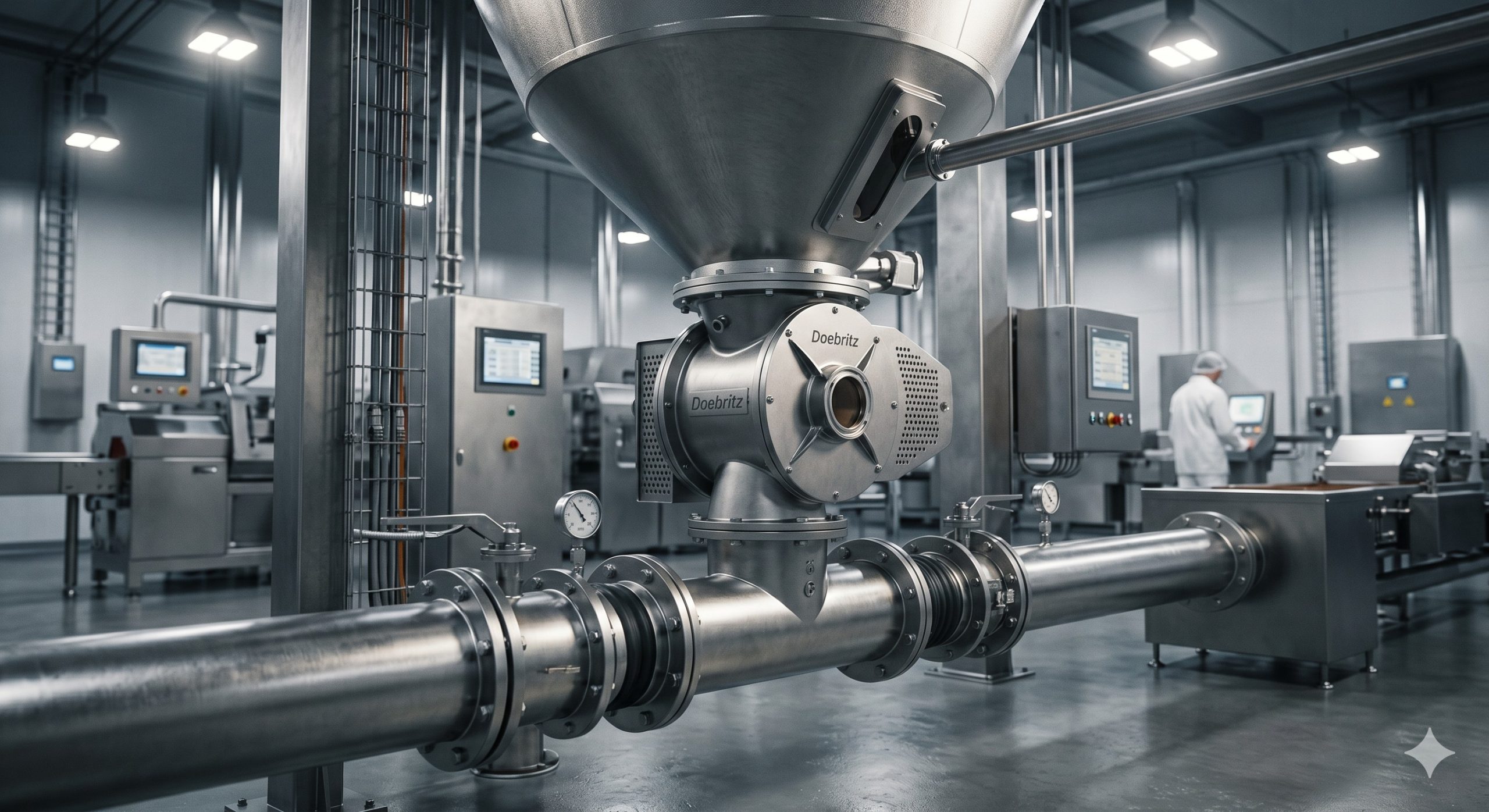

1. Chocolate Mix Silo Discharge

Gravity-fed from storage silos containing chocolate chips, drops, or bulk chocolate mix. The Doebritz Chocolate Star Discharge Valve provides consistent mass flow with no bridging, and its quick-clean design allows daily flavor/color changeovers.

2. Pneumatic Conveying of Cocoa Powder & Sugar

In dilute-phase lines from grinders to packing stations, the valve’s low leakage (≤0.2% of conveying air) prevents blowback and maintains line velocity. ATEX certification covers sugar dust (St2) and cocoa dust.

3. Loss-in-Weight Metering for Recipes

Integrated with PLC and VFD speed control, the DBR-1237 acts as a dosing feeder for chocolate spread, hazelnut paste powders, or milk powder blends. Accuracy ±1% of setpoint.

4. CIP-Cleaned High-Care Zones

For production of infant formula or pharmaceutical coatings, the valve’s 316L mirror finish and crevice-free geometry pass validation swab tests. Sanitary tri-clamp connections available.

Global OEM Assurance & Compliance

Doebritz operates under ISO 9001:2015 certified facilities. Every Chocolate Star Discharge Valve undergoes 100% hydrostatic shell test, leakage check (differential pressure decay), and dimensional layout report. Certifications include CE, TÜV, ATEX (EU 2014/34/EU), and FDA compliance for food contact. Doebritz provides full traceability from raw material melting to final assembly, making us a preferred partner for global confectionery OEMs and system integrators. Standard lead time 4–6 weeks; expedite options available.

Frequently Asked Questions (B2B Procurement)

Q1: What is the maximum allowable differential pressure for the Doebritz Chocolate Star Discharge Valve?

A: The standard DBR-1237 is rated for 1.0 bar (15 psi) differential at ambient temperature. For higher ΔP (up to 2.0 bar), contact Doebritz engineering for heavy-duty housing and reinforced shaft options.

Q2: Can the valve handle high-fat content powders like full-fat milk powder or cocoa butter powder?

A: Yes. The 316L mirror finish (Ra≤0.4μm) and optional PTFE-coated rotor prevent fat adhesion. Additionally, a heated jacket option (0–80°C) maintains fat fluidity and prevents build-up.

Q3: How do I clean the valve without disassembly?

A: The valve supports online CIP using hot water/detergent at up to 2 bar flow. Rotate the rotor slowly (5–10 rpm) during CIP. For full validation, the quick-release design allows complete disassembly in under 10 minutes without tools.

Q4: Is the ATEX certification valid for both chocolate dust and sugar dust?

A: Absolutely. The valve is certified for gas and dust atmospheres (II 1/2 D c T°C). For sugar dust (St2) and cocoa dust, Doebritz provides anti-static shaft seals and grounding. Zone 20 internal / Zone 21 external.

Q5: Can I get a custom flange or different inlet/outlet orientation?

A: Yes. Doebritz offers DIN, ANSI 150#, JIS, and Tri-clamp flanges. Inlet/outlet can be offset, square, or rectangular per your silo transition. Minimum order quantities for custom flanges apply.
