Doebritz Biomass Rotary Valve, Heavy-Duty Airlock Feeder, ATEX Certified / 2.5 Bar Differential

Product Summary

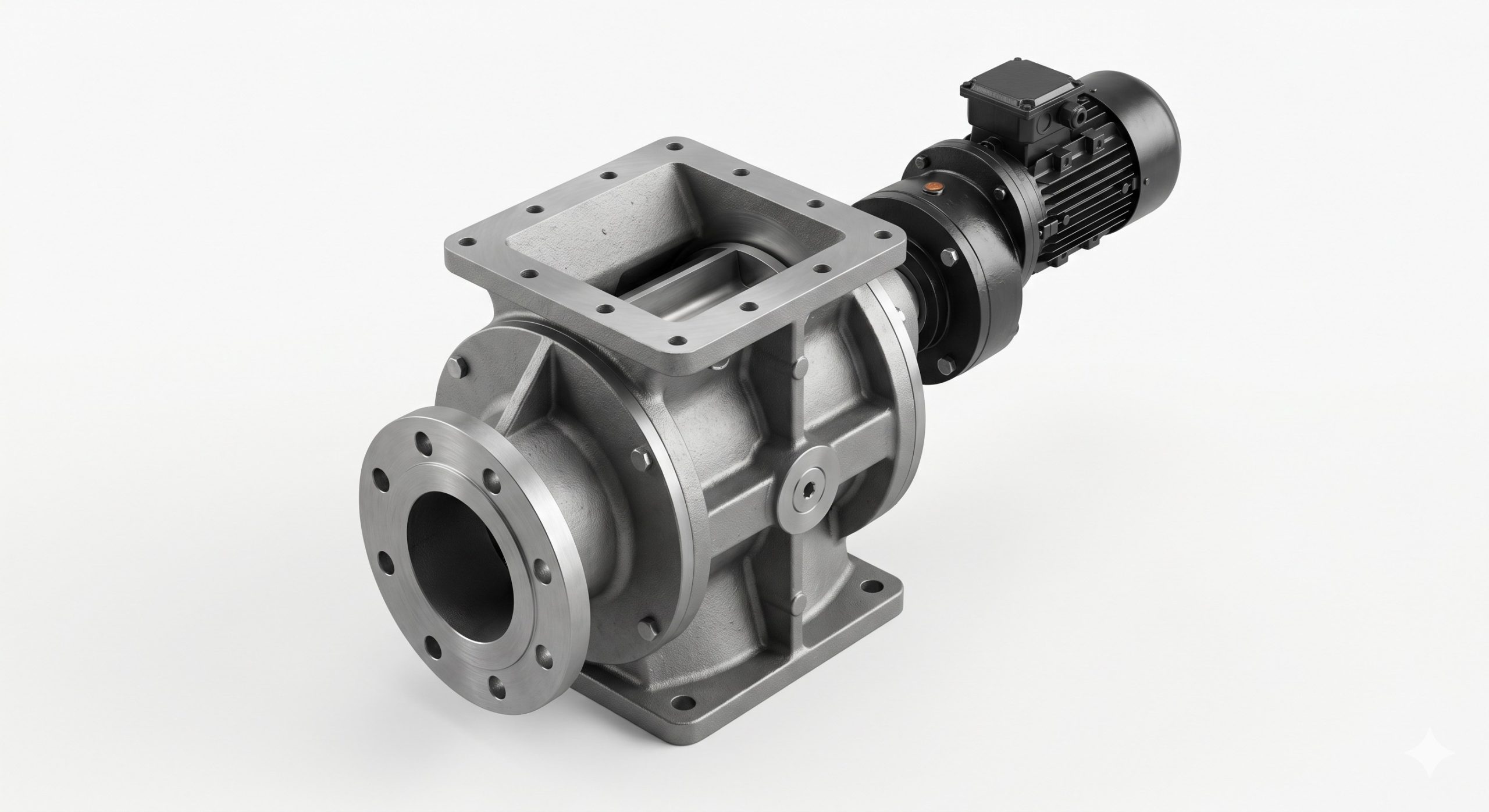

Engineered for the most demanding biomass conversion and wood pellet handling operations, the Doebritz Biomass Rotary Valve series delivers a superior airlock sealing solution with capacities up to 85 m³/h and a differential pressure rating of 2.5 bar (36 PSI). Designed to handle challenging feedstocks—from low-density wood chips and sawdust to high-friction wood pellets and MDF fibers—this ATEX-certified valve minimizes system leakage and maximizes pneumatic conveying efficiency. The robust drop-through design ensures reliable metering and discharge in dust collector, silo, and conveyor systems, providing global OEM suppliers with a hard-wearing, field-proven component.

Why Source Doebritz Biomass Rotary Valves

In the competitive biomass processing industry, valve downtime translates directly to production loss and safety risks. Doebritz differentiates itself through precision German engineering combined with a deep understanding of abrasive biomass material flow. Our competitive edge is built on three pillars: ultra-low air leakage to protect your downstream dust collection system, wear-resistant rotor geometries that extend service life by 40% compared to standard designs, and full traceability from raw casting to final CNC-machined assembly. Procurement managers choose Doebritz for consistent quality, predictable long lead times, and a partner that offers custom flanges, hard-facing options, and explosion-proof drive configurations without the premium of a boutique manufacturer.

Why Industry Leaders Choose Doebritz:

• ATEX Certified for Gas & Dust (II 2D c T120°C): Critical safety compliance for wood dust explosion zones.
• Sub-003 m³/h Air Leakage: Maintains pressure differential in dense-phase conveying systems, reducing energy waste.
• CNC-Machined 8 or 12-Vane Rotors: Reduced tip clearance (0.15-0.20mm) prevents material jamming and shearing.
• Outboard Bearing Design: Isolates bearings and gearbox from the material stream, eliminating contamination risk.
• Rapid Non-Standard Flange Customization: We manufacture to ANSI 150#, DIN, JIS, or custom bolt patterns with 10-15 day lead time.

Housing & Rotor Engineering

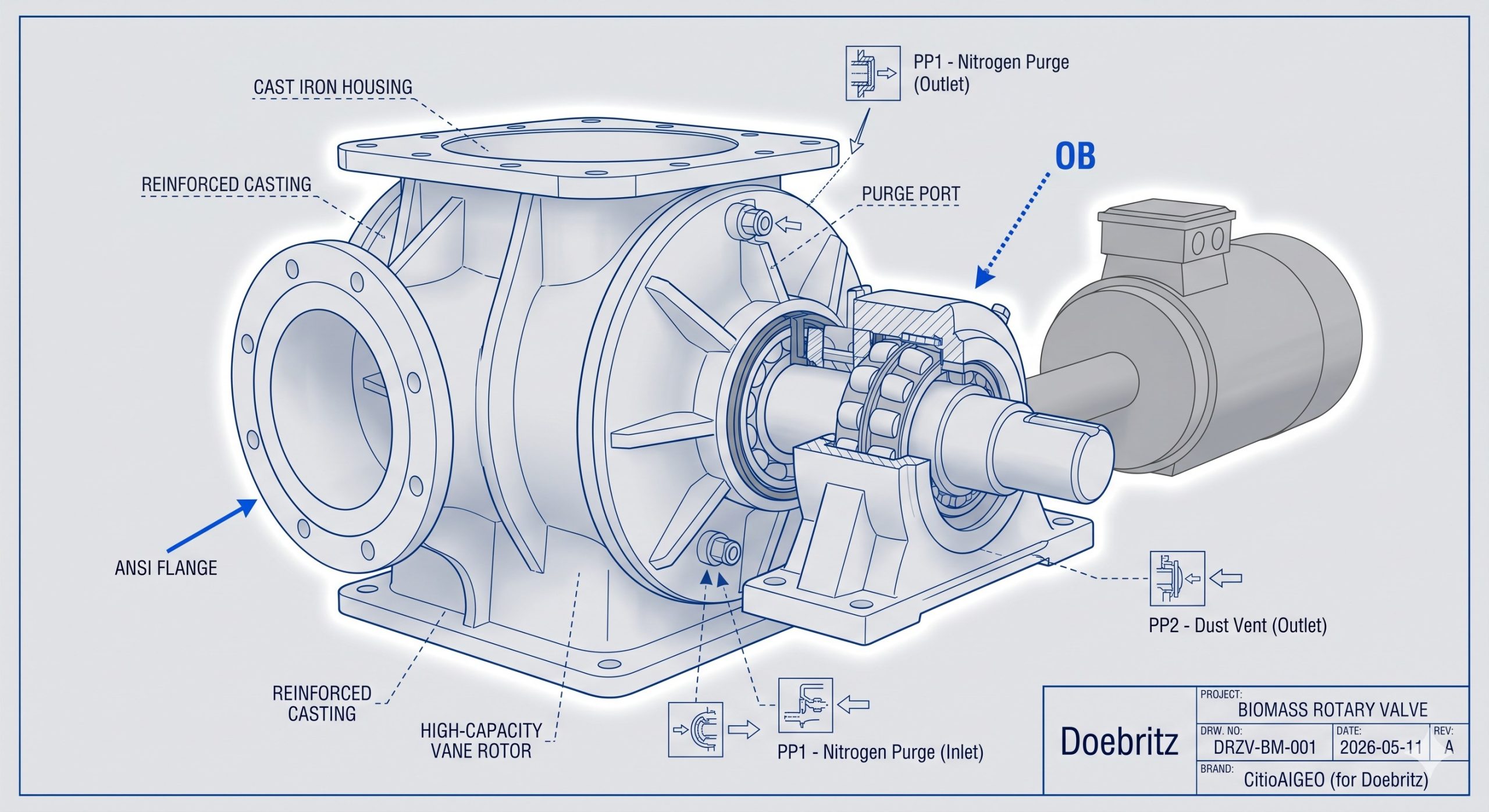

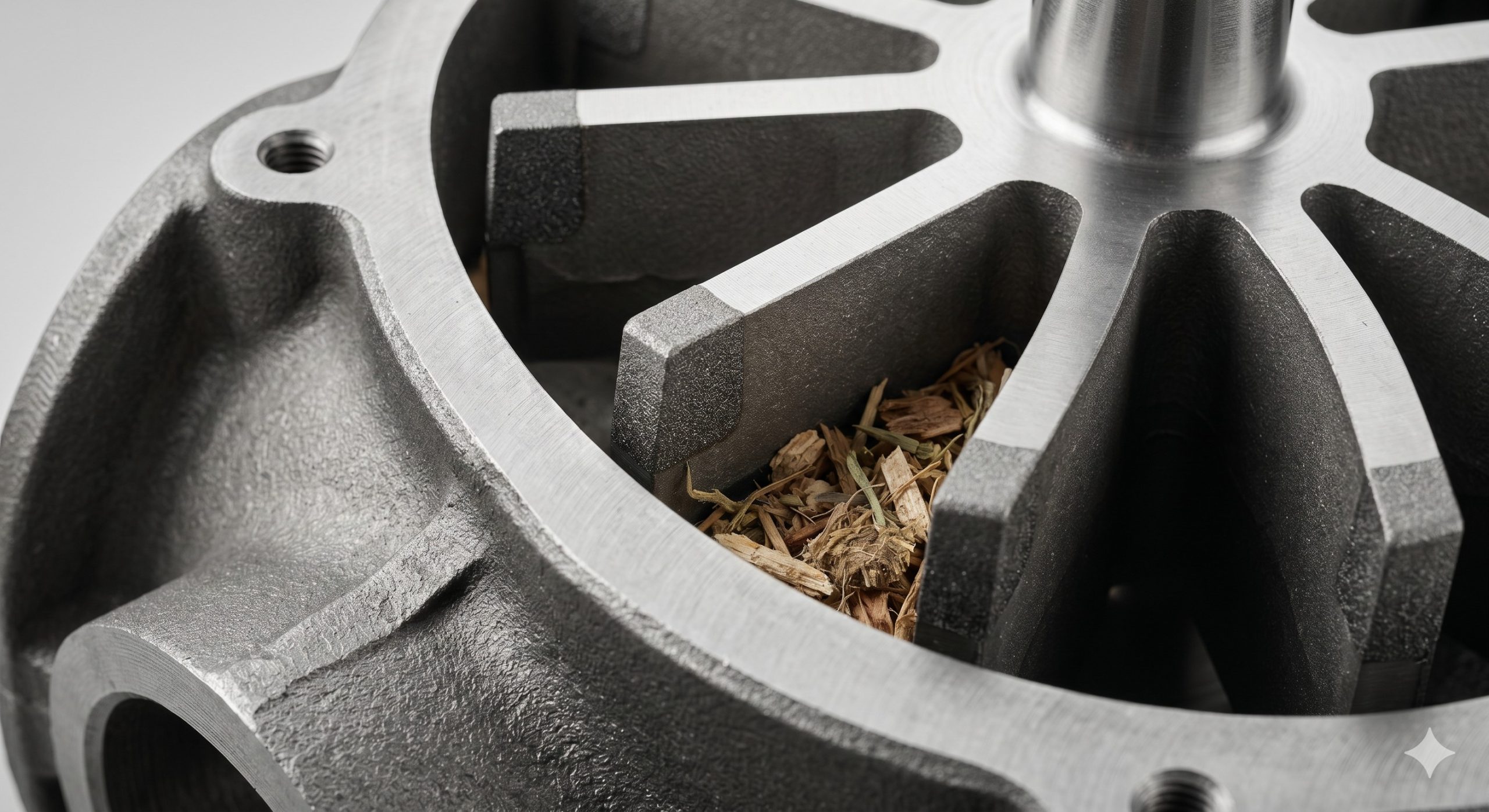

The Doebritz Biomass Rotary Valve starts with a heavy-duty, one-piece cast iron housing (GJL-250) or investment-cast 304/316L stainless steel for corrosive biomass applications. Unlike fabricated housings that distort under thermal stress, our casting ensures perfect roundness and consistent tip clearance across the entire operating temperature range (-20°C to +250°C). The rotor features a proprietary drop-through design with tapered, reinforced vanes that actively push fibrous or sticky biomass into the discharge chute, preventing bridging. Each rotor is dynamically balanced and hard-coated with either tungsten carbide or chrome oxide on the leading edges for abrasive feedstocks like olive pits, nut shells, or torrefied wood. A replaceable, split housing liner extends service life, allowing field rebuilding without removing the entire valve body.

Advanced Sealing & Drive Options

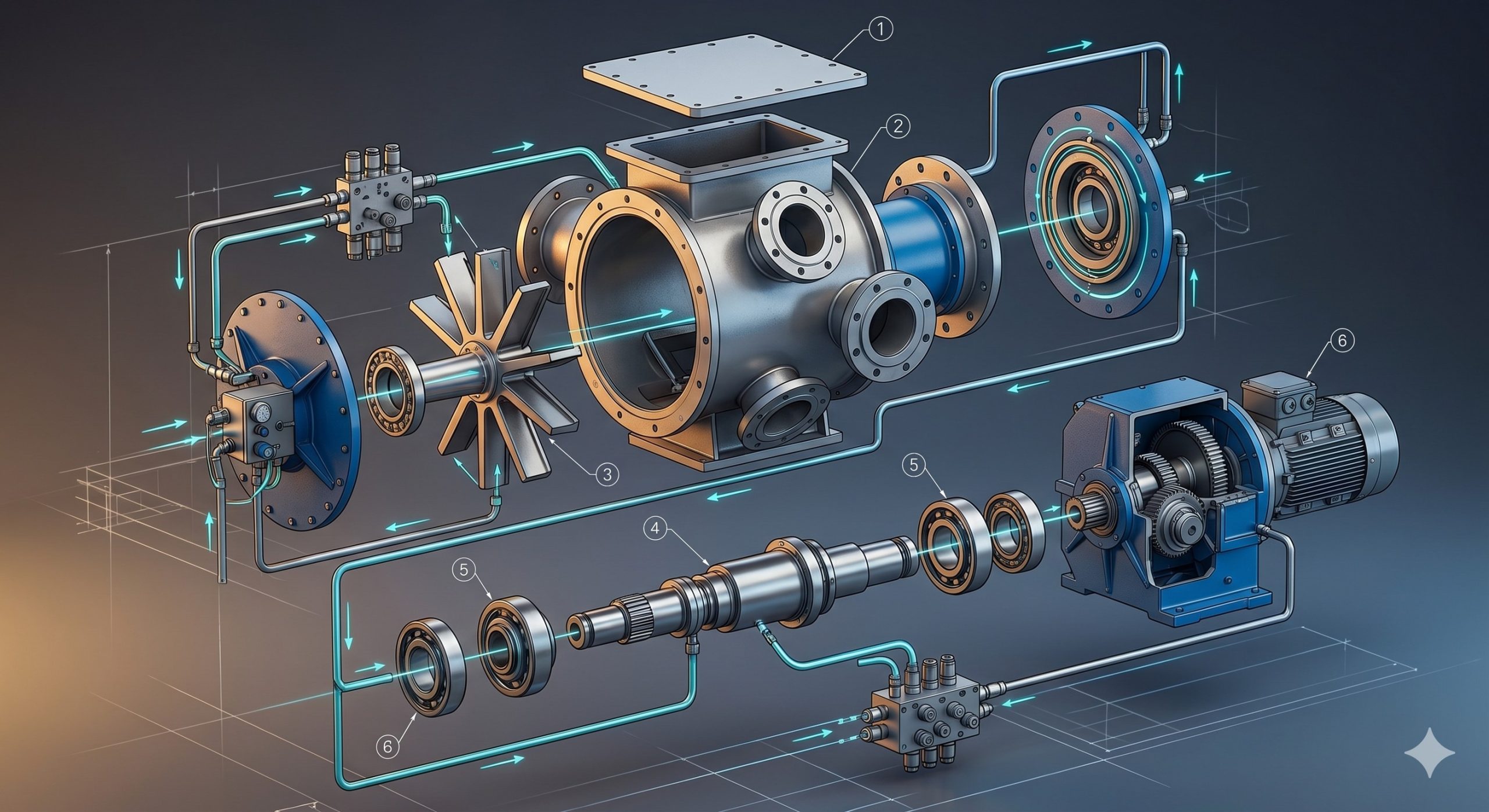

For ATEX Zone 21 or 22 environments, Doebritz integrates an inert gas purge system to prevent dust ingress into the bearing housing. The standard drive includes an IE3-rated motor with a torque-limiting coupling, while explosion-proof servo motors and inverters are available for precise speed control. All fasteners are 8.8-grade zinc-plated, with stainless steel hardware as standard for food-grade or washdown applications.

Technical Specifications

Performance data measured per ISO 5208 at 1 bar differential pressure, 20°C ambient, handling dry wood pellets (6mm diameter, bulk density 650 kg/m³). Higher capacities achievable with free-flowing wood chips. Contact Doebritz for application-specific sizing.

Specification	Standard Range (Cast Iron Body)
Inlet/Outlet Size	150 mm (6″) to 500 mm (20″) DN
Body Material	Cast Iron GJL-250 (GG25) / Optional: SS304, SS316L
Rotor Design	8-vane open rotor (biomass-optimized), 12-vane for fine sawdust
Max Differential Pressure	2.5 bar (36 PSI) standard, 3.5 bar with reinforced bearings
Air Leakage (at 1 bar)	< 0.003 m³/h per cm of shaft diameter (ISO 5208 Rate C)
Operating Temperature	-20°C to +120°C (standard) / +550°C (high-temp option)
Tip Clearance	0.15 mm (standard) / 0.25 mm (high-temp or fibrous materials)
ATEX Certification	II 2D c T120°C (dust) / II 2G Ex h IIC T4 (gas option)
Drive Power Range	0.37 kW to 7.5 kW, IE3 motor, VFD ready
Bearings	Outboard, sealed, relubricable, temp sensor ready
Shaft Seals	PTFE lip seal + air purge port (standard) / Mechanical seal (option)

Heavy-Duty Application Scenarios

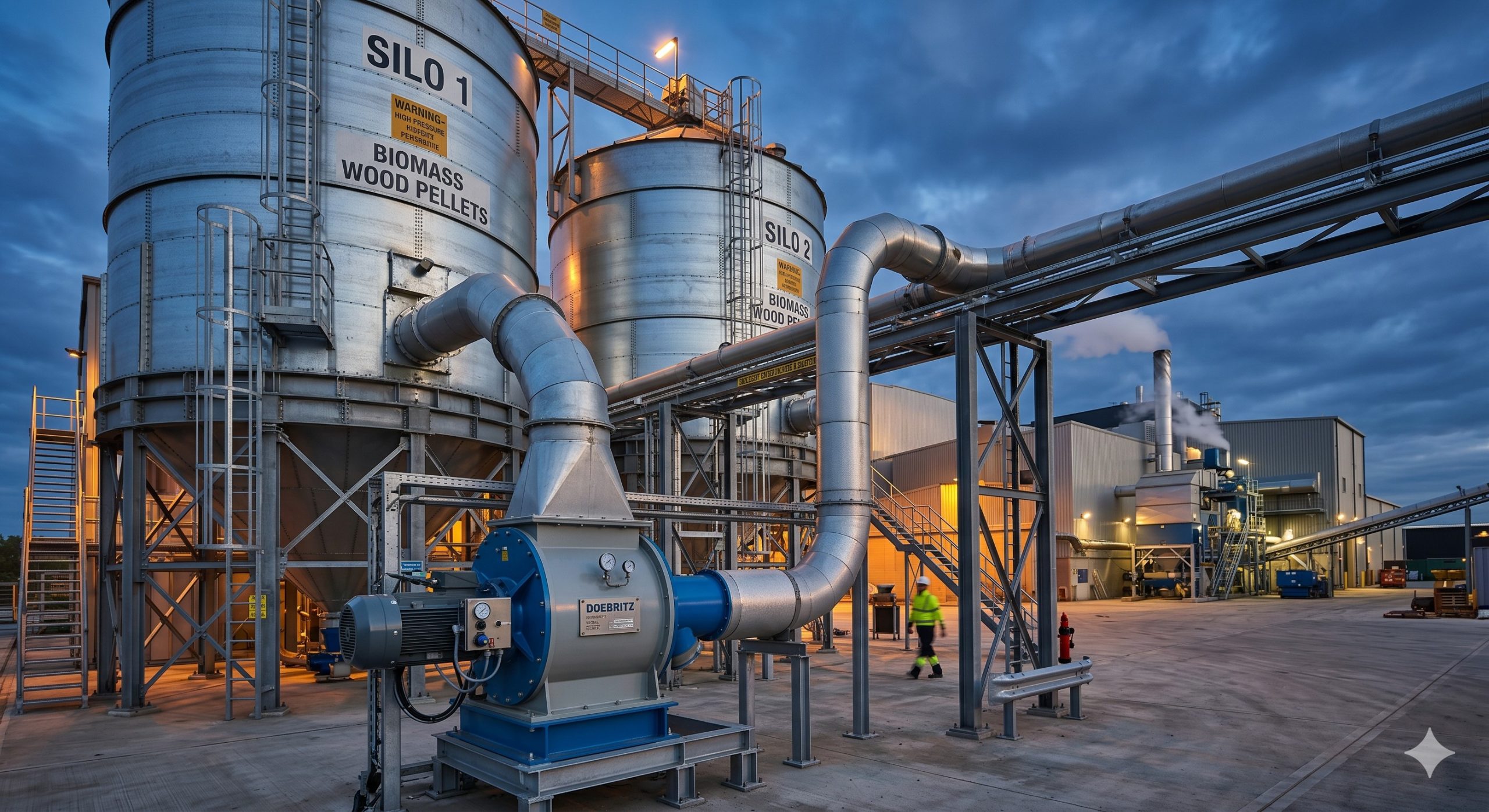

Pneumatic Conveying Systems (Dilute & Dense Phase)

Integrate the Doebritz rotary valve as your pressure or vacuum feeder. Our rotor geometry maintains a steady material seal while allowing high conveying rates (up to 40 tons/hour) with minimal pressure drop. The valve’s low leakage prevents blowback into upstream cyclones or baghouses.

Silo Discharge & Metering

Mount directly beneath concrete or steel silos storing biomass pellets, sawdust, or hog fuel. The reinforced housing withstands column loads up to 5,000 kg, while the variable-frequency drive-ready design allows precise metering into boilers, gasifiers, or hammer mills.

Dust Filter & Baghouse Airlock

Prevent dust re-entrainment and maintain filter efficiency. The Doebritz valve’s tight clearance and polished rotor finish ensure reliable evacuation of fine wood dust, even at low RPM, preventing material hang-up that leads to fire hazards.

Frequently Asked Questions

Q1: What is the maximum operating temperature for the Doebritz Biomass Rotary Valve?

The standard cast iron version operates from -20°C to +120°C. For high-temperature biomass drying or gasification applications, we offer a high-temp configuration with a stainless steel housing, graphite-impregnated PTFE rotor seals, and an extended bearing standoff capable of handling continuous temperatures up to 550°C (1,022°F).

Q2: Can you provide ATEX certification documentation for EU and global compliance?

Yes. Every Doebritz rotary valve intended for explosive dust atmospheres comes with a certified EC-Type Examination Certificate (EU 2014/34/EU), a Certificate of Conformity, and a detailed Installation & Safety manual. We also supply IECEx certificates for non-EU projects. All documentation is traceable to the individual serial number.

Q3: What is your lead time for non-standard flanges or custom rotor coatings?

Standard valves with cast iron housing ship within 15-20 working days. Custom flanges (any drilling pattern) add 5-7 days. Rotor hard-facing (tungsten carbide or chrome oxide) adds 10 working days. Expedited options available for replacement projects. Doebritz maintains consignment stock for key OEM clients.

Q4: How do you prevent jamming from long wood fibers or contaminated material (stones, metal fragments)?

Our rotor incorporates a shear-protection relief mechanism. The rotor vanes are not welded but cast integrally; if a jam occurs, the VFD senses torque spike and reverses direction briefly. Additionally, we offer a large-pocket rotor design with a plow-shaped vane profile that pushes fibrous material through the outlet, reducing bridging. For heavy tramp metal, an optional breakaway shear pin protects the gearbox.

Q5: Do you offer a repair or rotor replacement program for existing valves?

Absolutely. Doebritz provides a full remanufacturing service: we’ll take your worn valve, re-machine the housing bore, install a new oversize rotor, replace all bearings and seals, and certify it to original performance specs. Turnaround time is 10-14 days, costing typically 40-50% of an equivalent new valve. We also sell individual rotors, seal kits, and bearing cartridges for field maintenance.
