ATEX Zone 20/21 Compliant Valve: Doebritz Volumetric Metering Screw Feeder | Certified Explosion Safety

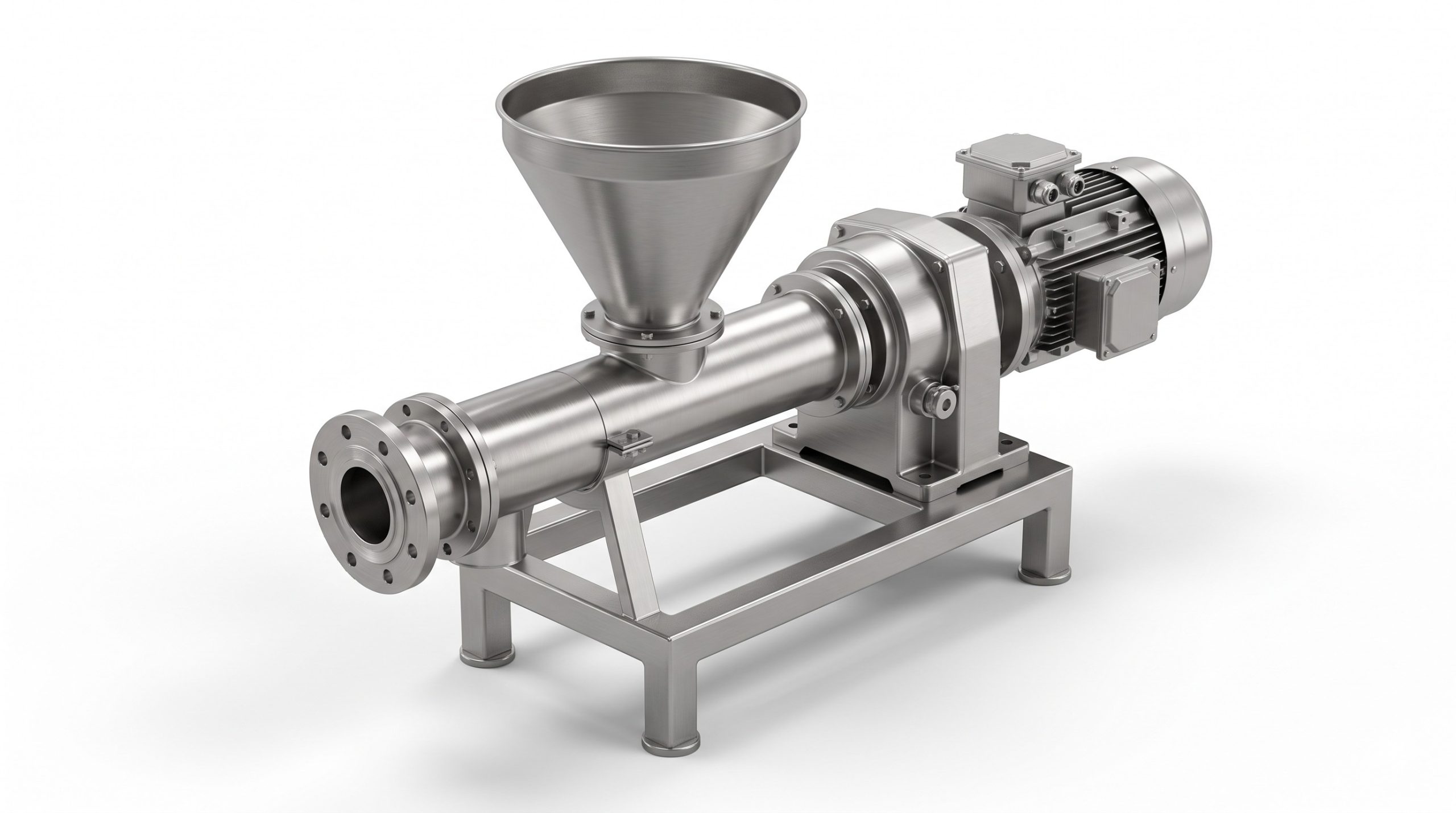

Executive Overview: Precision Volumetric Metering for Hazardous Environments

In the demanding world of heavy industrial processing, accurate volumetric feeding of bulk solids is not just a process requirement—it is a cornerstone of product quality and operational efficiency. The Doebritz volumetric metering screw feeder is engineered to deliver unparalleled precision and reliability, specifically designed to excel in the most challenging pneumatic conveying and gravity discharge applications. As a premier solution for ATEX-certified environments, this feeder embodies Doebritz’s 50-year legacy of German-engineered heavy-duty equipment, providing a robust, maintenance-optimized answer to your material handling challenges. Our screw feeders are the result of continuous innovation, designed to integrate seamlessly into new or existing production lines, ensuring consistent material flow and minimal downtime.

Why Plant Sourcing Chooses Doebritz Volumetric Screw Feeders

For plant engineers and procurement specialists, the choice of a metering feeder is critical to the entire production lifecycle. The Doebritz volumetric metering screw feeder stands apart due to its focus on operational excellence and total cost of ownership. Our design philosophy centers on three core pillars: extreme durability, pinpoint accuracy, and uncompromised safety.

• Superior Metering Accuracy: The feeder’s precision-ground screw and close-tolerance housing ensure a consistent, pulsation-free material flow, drastically reducing variability in downstream processes. This accuracy is crucial for maintaining recipe integrity and reducing material waste, directly impacting your bottom line.
• Minimal Air Leakage & High Efficiency: Our unique design, featuring a precision-machined screw and advanced sealing technology, delivers the lowest air leakage rates in its class. This is achieved by maintaining a tight clearance between the rotating screw and the feeder body, effectively creating a material seal that prevents pressure loss and ensures stable system performance, particularly in positive and negative pressure pneumatic conveying lines. This efficiency translates directly to reduced energy costs and enhanced system stability.
• Unmatched Durability & Longevity: Constructed from premium materials such as SUS304 and SUS316L stainless steel, the feeder is built to withstand the most abrasive and corrosive materials. With optional internal coatings like tungsten carbide or ceramic, the Doebritz feeder offers an extended operational lifespan, minimizing replacement frequency and maintenance costs. This heavy-duty construction is backed by our rigorous quality control, ensuring years of reliable service.
• ATEX-Certified Explosion Protection: Safety is non-negotiable in industrial processing. The Doebritz metering feeder is fully certified for ATEX Zone 20, 21, and 22 hazardous areas. Our flameproof construction, reinforced housing, and anti-static design elements provide maximum protection against dust explosions, ensuring compliance with the strictest international safety standards.

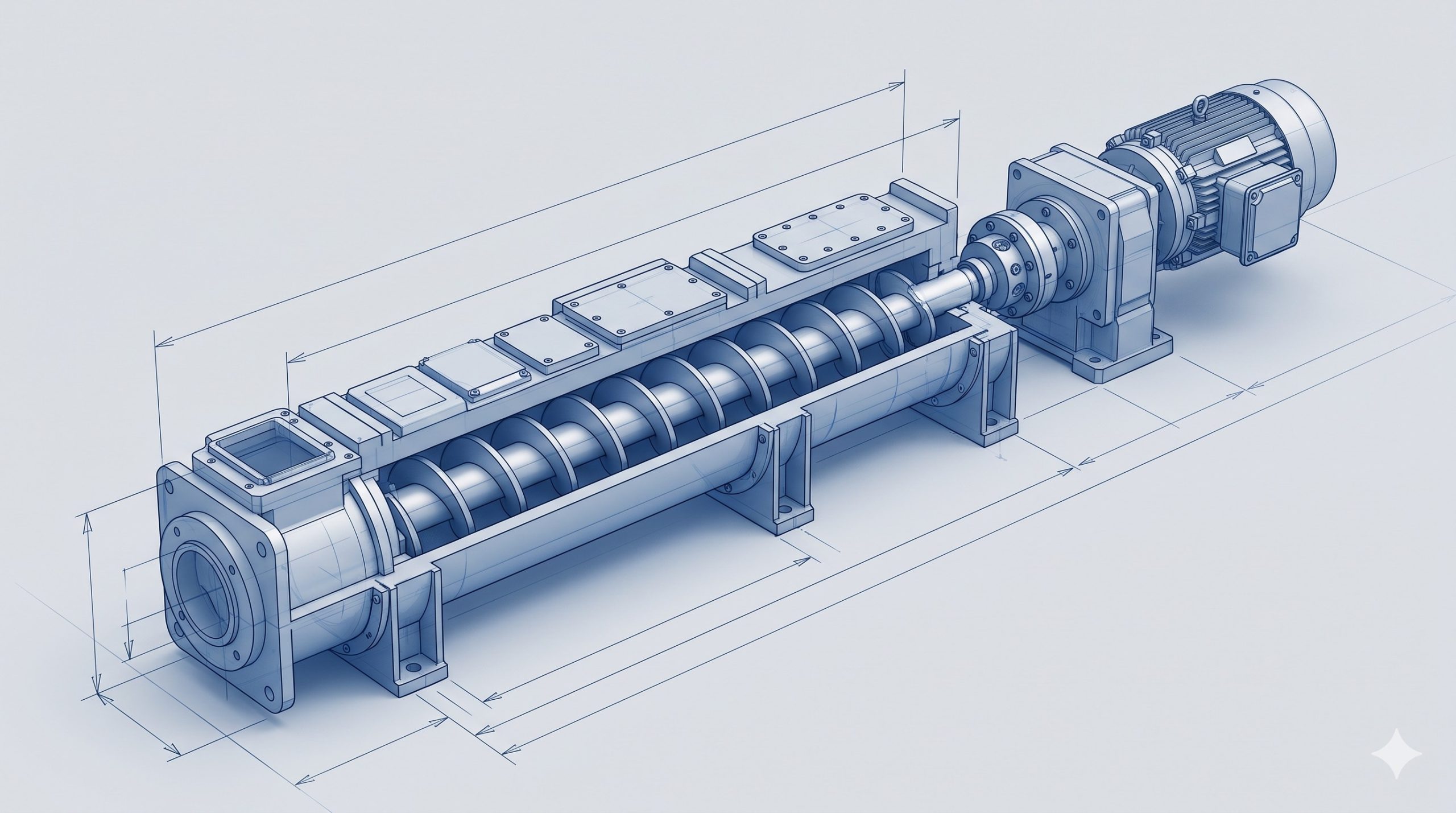

Screw & Feeder Engineering: The Core of Metering Excellence

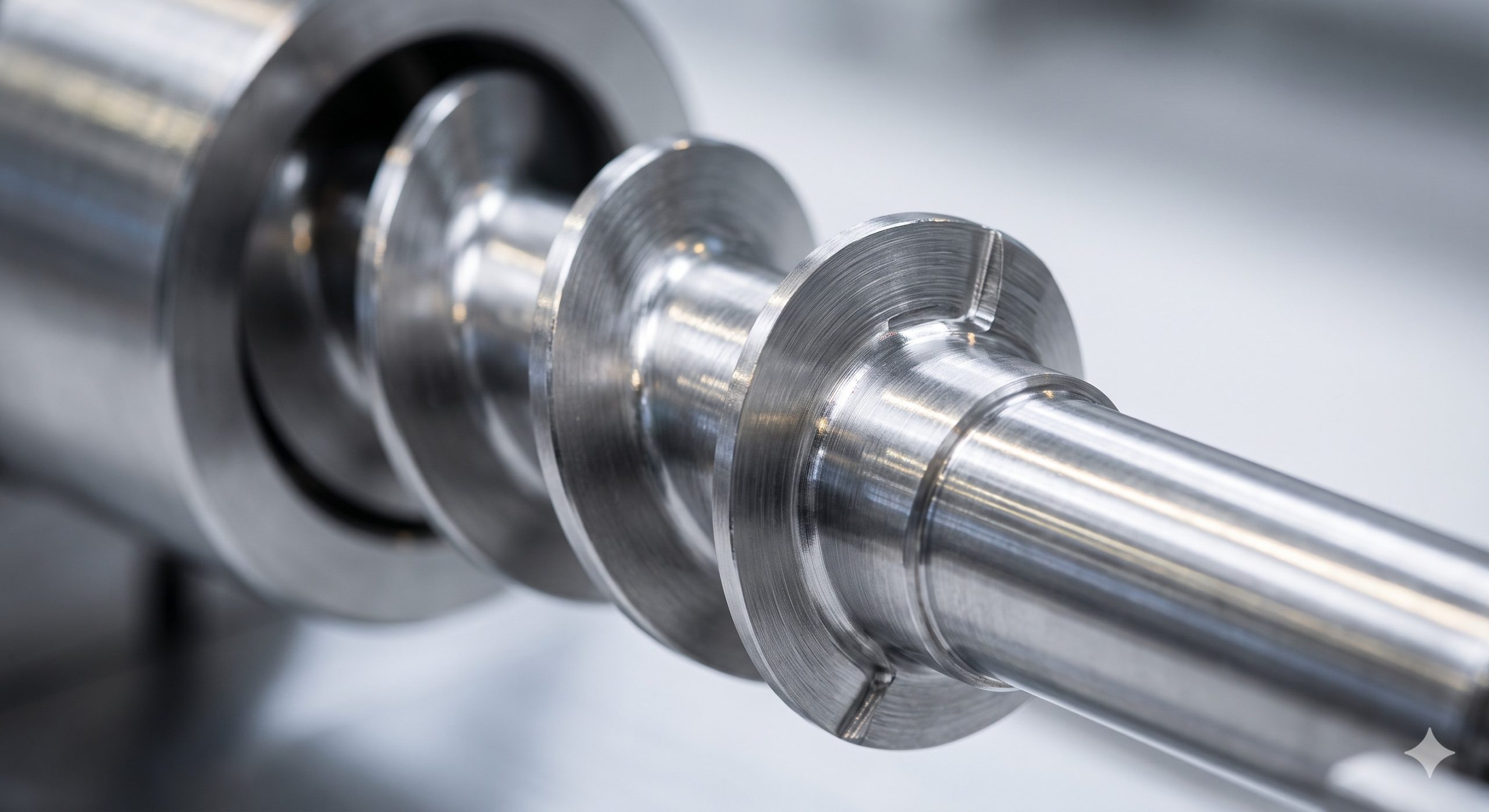

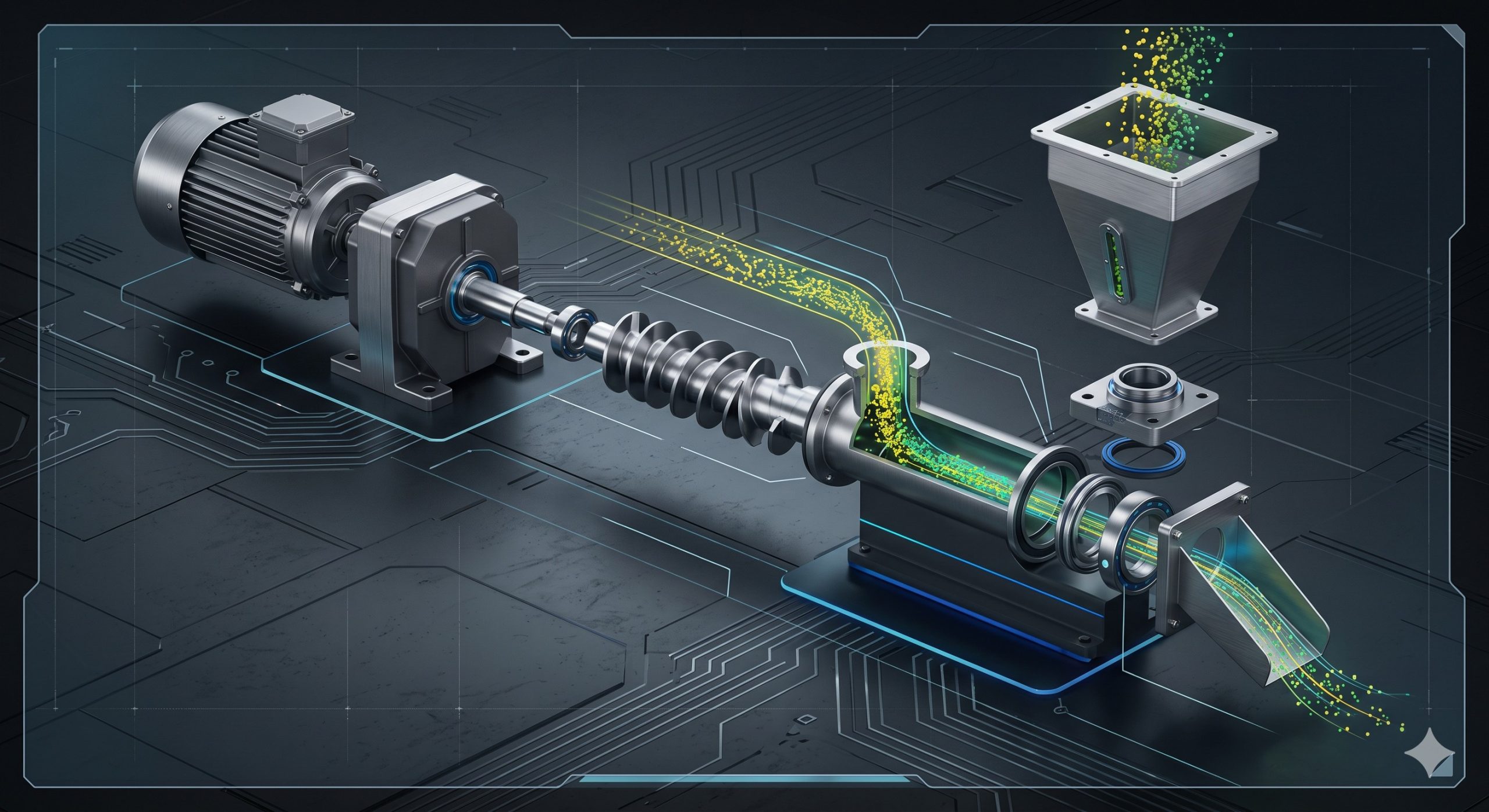

The performance of the volumetric metering screw feeder is defined by the meticulous engineering of its internal components. At the heart of the system is the screw itself, available in a variety of profiles including standard, variable pitch, and tapered designs, each optimized for specific material characteristics—from free-flowing pellets to cohesive powders. This screw is precision-machined on advanced CNC equipment to maintain a uniform tolerance, ensuring consistent material displacement with each revolution.

The feeder’s housing is equally critical, manufactured from heavy-duty cast iron or high-grade stainless steel to provide a rigid and durable structure. The internal surface is finely finished to a low Ra value, reducing friction and preventing material build-up. This precision fit between the screw and housing is the key to the feeder’s low leakage rates and high volumetric efficiency. Doebritz’s investment in cutting-edge manufacturing technology ensures that each component meets exacting standards, resulting in a feeder that delivers reliable and repeatable performance over its entire lifespan.

Technical Specifications

Specification	Detail
Feeder Type	Volumetric Metering Screw Feeder
Body Material	SUS304, SUS316L, Carbon Steel (Painted/Nickel-Plated)
Screw Material	SUS304, SUS316L (Optional Tungsten Carbide / Ceramic Coating)
Internal Finish	Mirror Finish / Ra ≤ 0.4 μm / 0.8 μm / 1.6 μm
Shaft Seal	Lip Seal with Air Purge System
Explosion Protection	ATEX Zone 20, 21, 22 (Flameproof Design, Pressure Rated up to 16 bar)
Flange Connection	HG20592, DIN, ANSI (Customizable)
Drive Motor	Explosion-proof Motor with VFD Speed Control
Ambient Temperature	-15°C to 60°C
Material Temperature	0°C to 120°C
Optional Cooling	Water Cooling Jacket
Cleaning Method	Manual Disassembly, CIP Cleaning

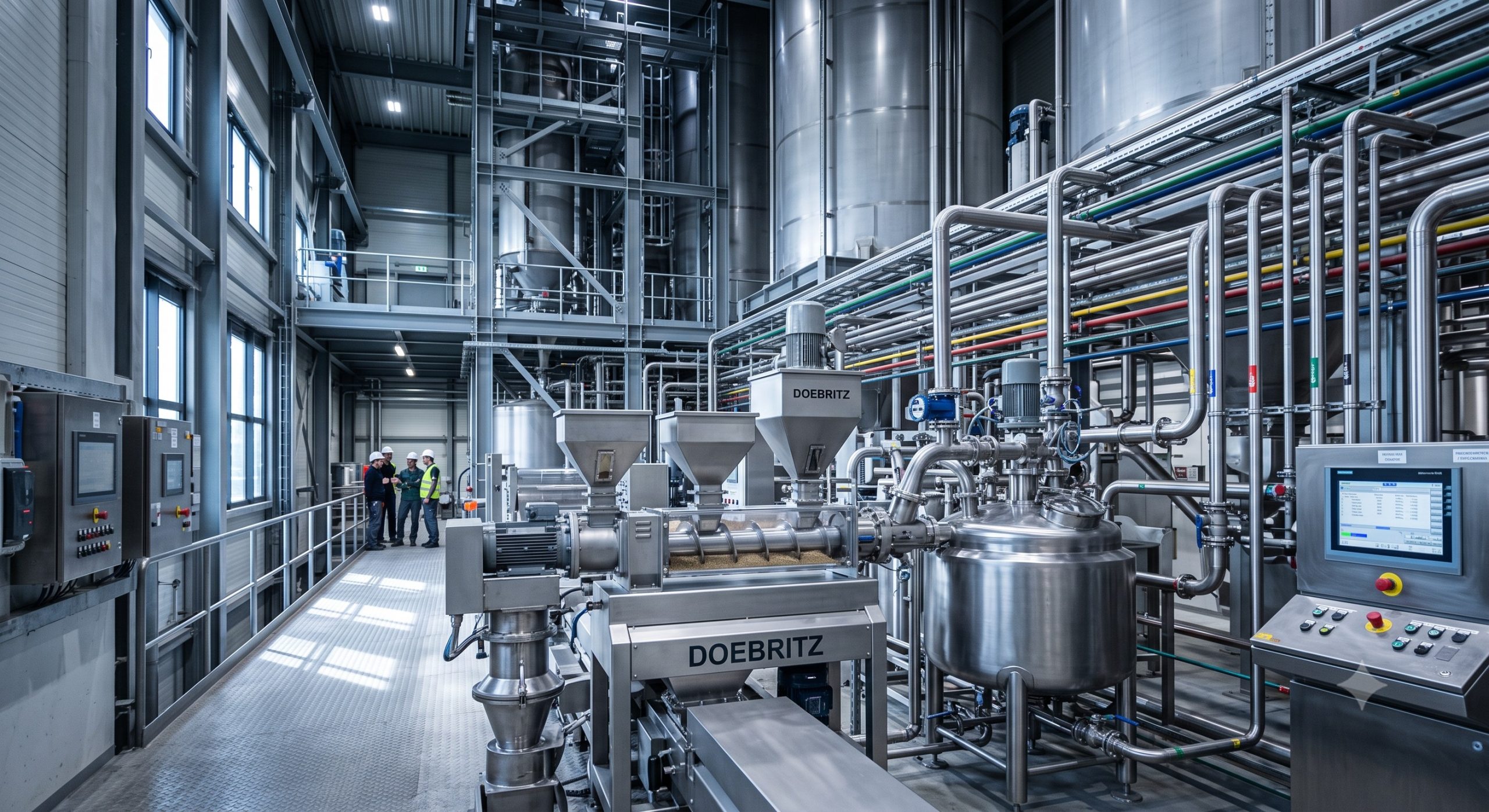

Heavy-Duty Application Scenarios

Chemical & Petrochemical Industries

In the chemical sector, the Doebritz metering feeder is an essential component for accurately feeding a wide range of powders and granules, such as carbon black, titanium dioxide, and various polymer pellets. Its ATEX certification and ability to handle corrosive materials, like PTA, make it a trusted choice for safe and efficient production.

Food & Pharmaceutical Processing

For food and pharmaceutical applications, hygiene and product purity are paramount. Our volumetric metering screw feeder is available in a sanitary design, featuring 316L stainless steel construction, a mirror-polished internal finish, and quick-clean demountable capability. This design prevents cross-contamination and allows for rapid cleaning, meeting GMP and FDA standards for processing ingredients like奶粉, starch, and pharmaceutical excipients.

Mining & Minerals

Handling heavy, abrasive materials like mineral powders, cement, and fly ash demands a feeder of exceptional strength. Doebritz feeders for these applications feature wear-resistant coatings, heavy-duty shaft seals, and outboard bearings to withstand the extreme loads and harsh environments, ensuring continuous, reliable operation.

Global OEM Assurance & Supply Chain Reliability

Doebritz is not just a manufacturer; we are a global partner committed to your operational success. Our extensive supply chain and manufacturing capabilities allow us to offer exceptional lead times and flexible delivery schedules, keeping your projects on track. As an OEM supplier to many of the world’s leading engineering firms, we provide a level of quality and consistency that is unmatched in the industry. You can rely on our comprehensive documentation, material certifications, and expert technical support to facilitate smooth integration and long-term reliability.

Frequently Asked Questions

What materials is the Doebritz metering screw feeder available in?

We offer our feeders in a wide range of materials to suit your application. The standard options include SUS304 and SUS316L stainless steel, and carbon steel with various finishes. For highly abrasive or corrosive applications, we can provide internal coatings such as tungsten carbide or ceramic, and the feeder can be manufactured using specialized polymers like PE or PTFE.

How does the Doebritz feeder ensure minimal air leakage?

Minimal air leakage is achieved through a combination of precision manufacturing and advanced sealing. The screw is machined to extremely tight tolerances against the housing, creating a near-perfect fit. This, combined with our proprietary air purge and multi-lip seal configurations, ensures that pressure loss is minimized, preserving the efficiency of your conveying system.

Is this feeder suitable for ATEX Zone 21 applications?

Yes, absolutely. The Doebritz volumetric metering screw feeder is designed and certified to operate safely in ATEX Zone 20, 21, and 22 environments. Our explosion-proof design includes features like a robust, flameproof housing and anti-static components to mitigate ignition risks.

Can the feeder be customized for my specific process?

Certainly. Doebritz is renowned for its customization capabilities. We can tailor the feeder’s material, construction, flange sizes (DIN, ANSI, or JIS), drive motor (with VFD options), screw design, and coating to meet your exact process parameters and integration requirements.

What support and documentation does Doebritz provide?

As a dedicated B2B partner, we offer comprehensive support including detailed engineering drawings, 3D models, material certifications, operation and maintenance manuals, and a complete after-sales service network. We support you from initial sizing and selection through to installation, commissioning, and ongoing maintenance.
