ATEX Zone 20/21 Compliant Valve: Doebritz Twin Screw Powder Feeder | Certified Explosion Safety & Precision Metering

Precision Volumetric Feeding for Hazardous & High-Value Powders

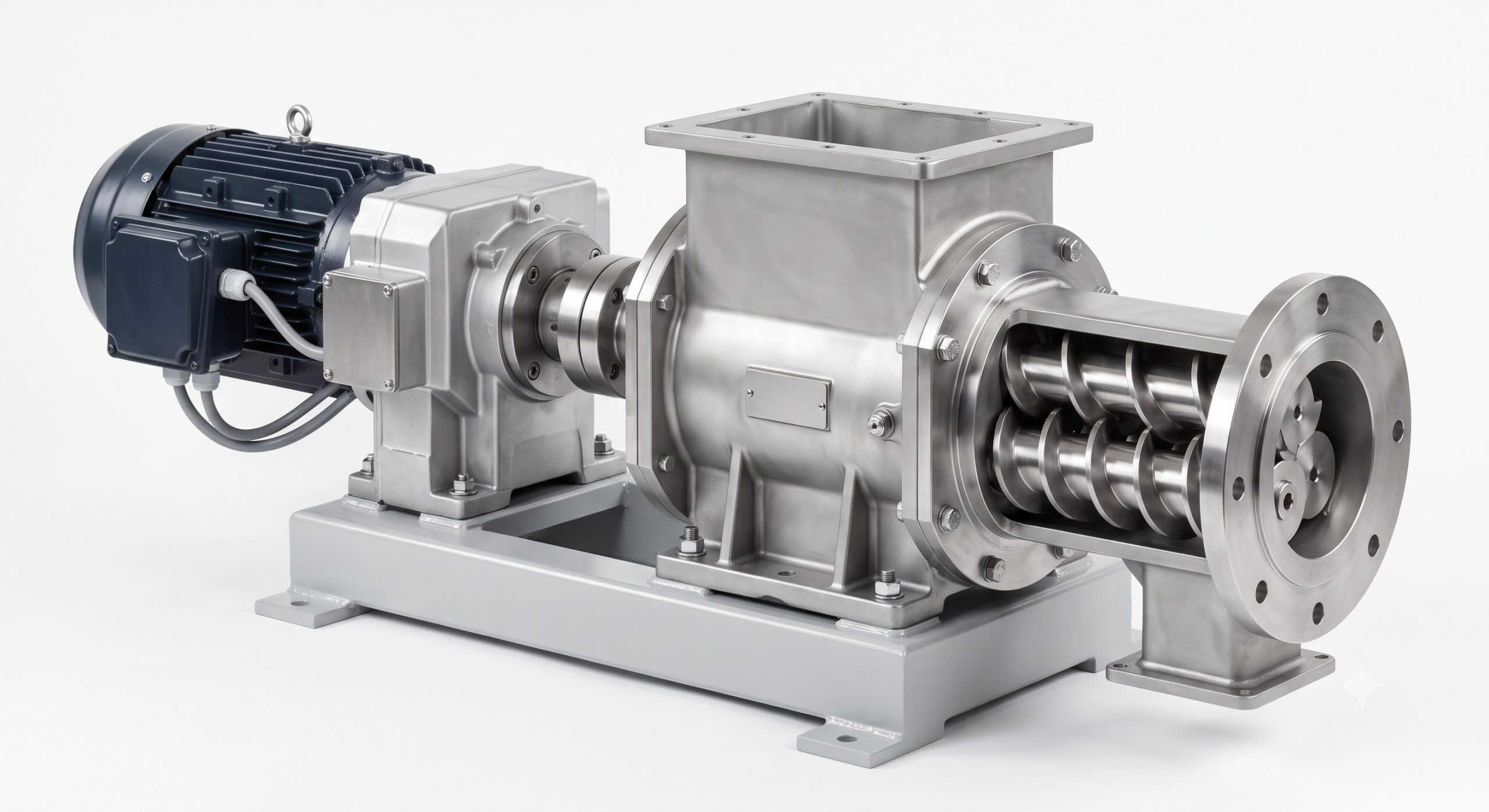

The Doebritz Twin Screw Powder Feeder represents a paradigm shift in gravimetric and volumetric feeding for the global bulk solids industry. Engineered from the ground up for demanding applications ranging from ATEX Zone 20/21 explosive atmospheres to high-purity pharmaceutical lines, this feeder is not merely a component; it is a critical process guarantee. As a flagship product from Doebritz’s heavy-duty manufacturing division, it combines decades of material handling expertise with precision CNC machining to deliver unparalleled metering accuracy, robust construction, and absolute process safety. For plant managers and process engineers seeking a reliable, low-maintenance solution for difficult powders, the Doebritz twin screw feeder offers a superior total cost of ownership (TCO) and a clear competitive advantage.

Why Plant Sourcing Chooses Doebritz Twin Screw Powder Feeder

• Superior Metering Accuracy: The positive displacement nature of the twin screw design ensures exceptional volumetric consistency, minimizing feed rate deviation regardless of material bulk density fluctuations.
• Minimal Air Leakage & System Integrity: Precision-ground screws and a tight-fitting housing maintain minimal clearances, effectively sealing against air leakage. This preserves pneumatic conveying line pressure and prevents material blowback, ensuring clean plant operations.
• ATEX Certified Explosion Safety: Fully certified for use in ATEX Zone 20, 21, and 22 (dust) environments, featuring flameproof construction, a certified explosion-proof motor, and robust earthing provisions for ultimate safety in hazardous areas.
• Heavy-Duty CNC Precision: Manufactured in Doebritz’s state-of-the-art facility, every component is machined to exacting tolerances. This ensures interchangeable parts, extended Mean Time Between Failures (MTBF), and consistent performance over the equipment’s lifecycle.
• Global OEM Supply Capability: Doebritz provides comprehensive OEM solutions, offering custom flanges (DIN, ANSI, JIS), specialized material finishes, and tailored drive options to integrate seamlessly into any new or existing system.

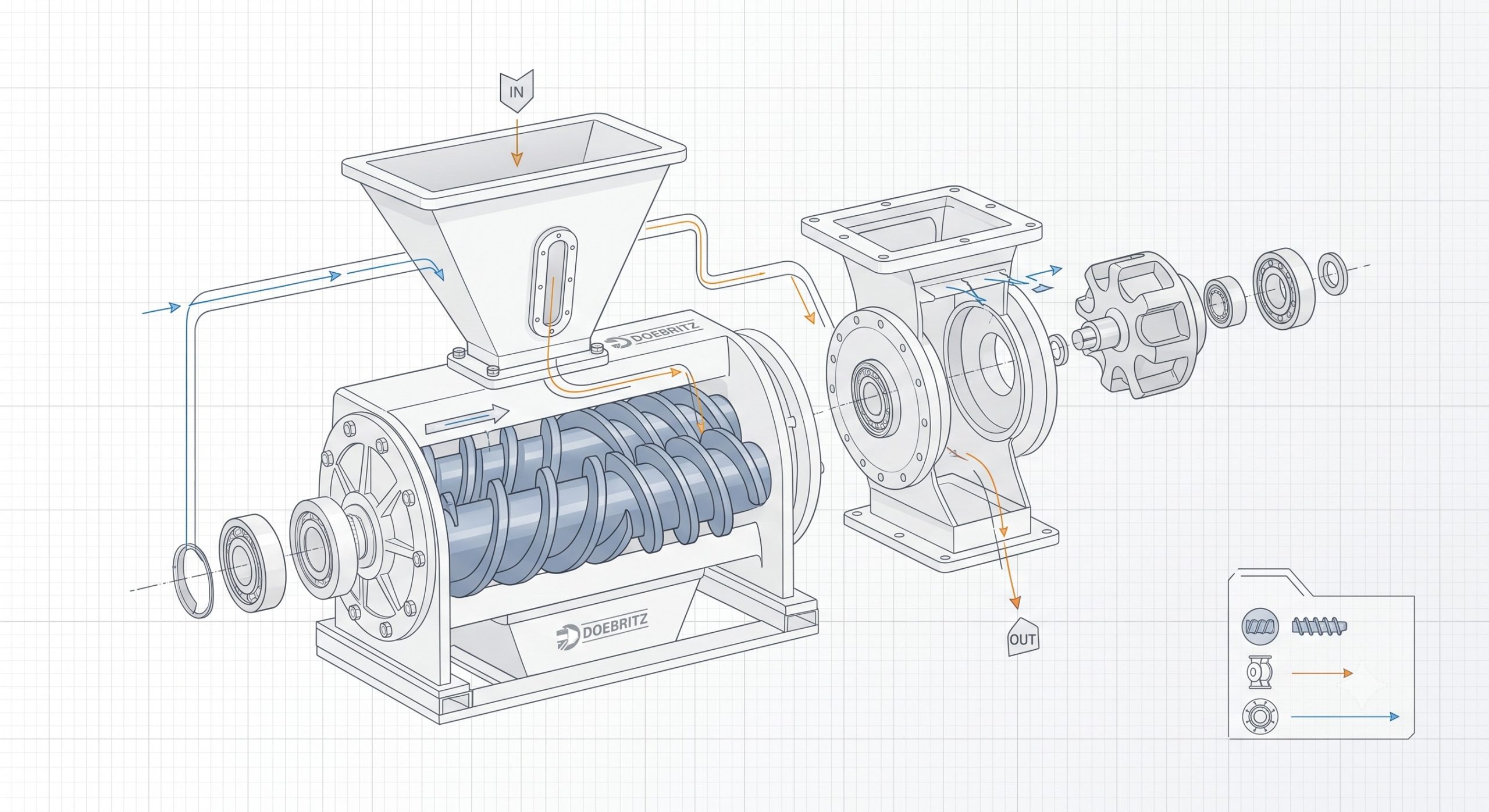

Housing & Feeder Engineering

The heart of the Doebritz Twin Screw Powder Feeder lies in its robust engineering. The housing is available in a range of materials, including cast iron (GGG-40) for general industrial use, stainless steel (SUS304 / SUS316L) for corrosive or sanitary applications, and specialized wear-resistant alloys for abrasive materials. The feeder features an outboard bearing arrangement that isolates the bearings from the material flow, preventing contamination and extending service life. High-performance sealing systems, including double lip seals with air purge, effectively prevent dust ingress into the bearing housing and minimize fugitive emissions.

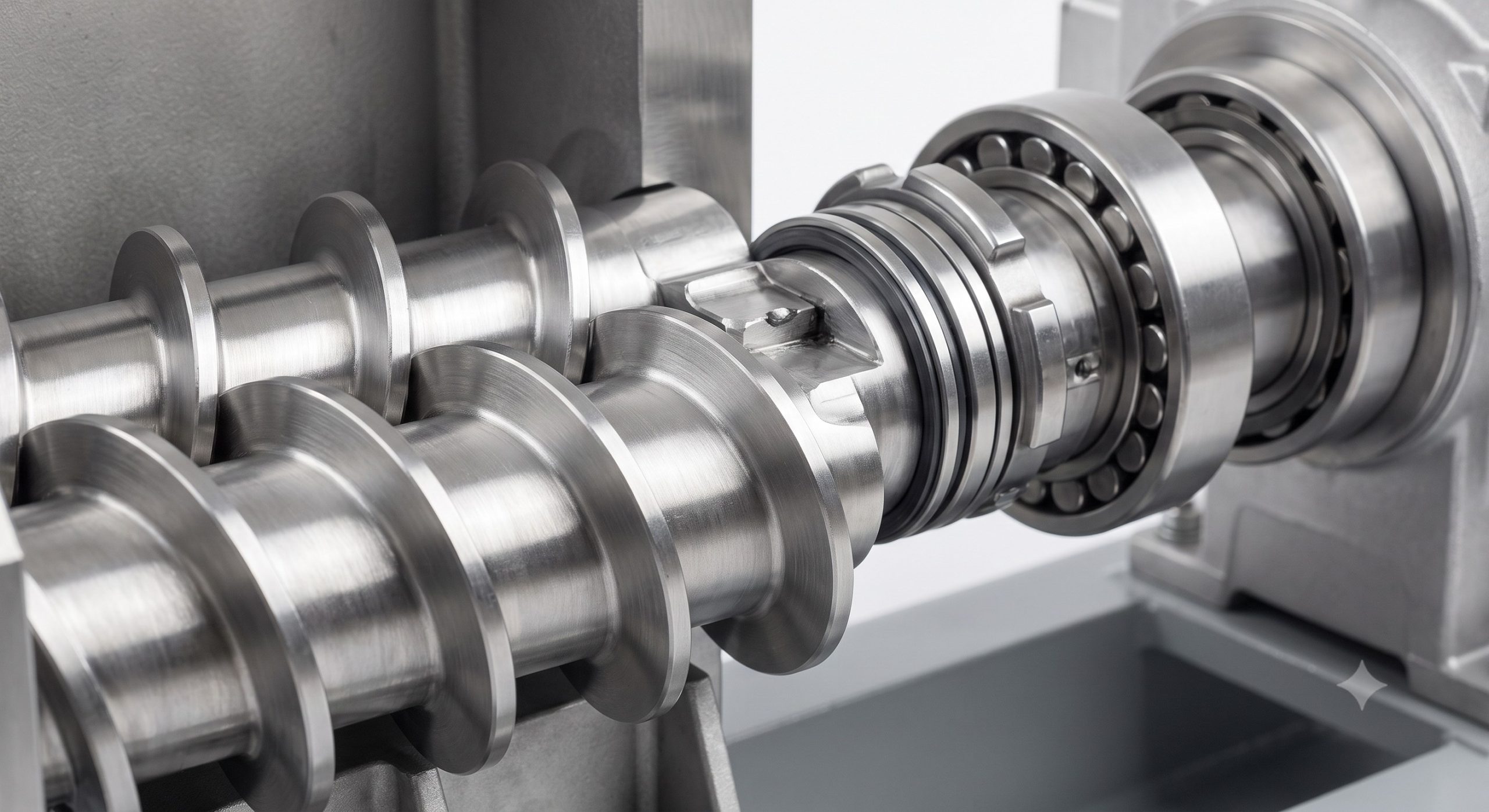

Screw & Drive Configuration

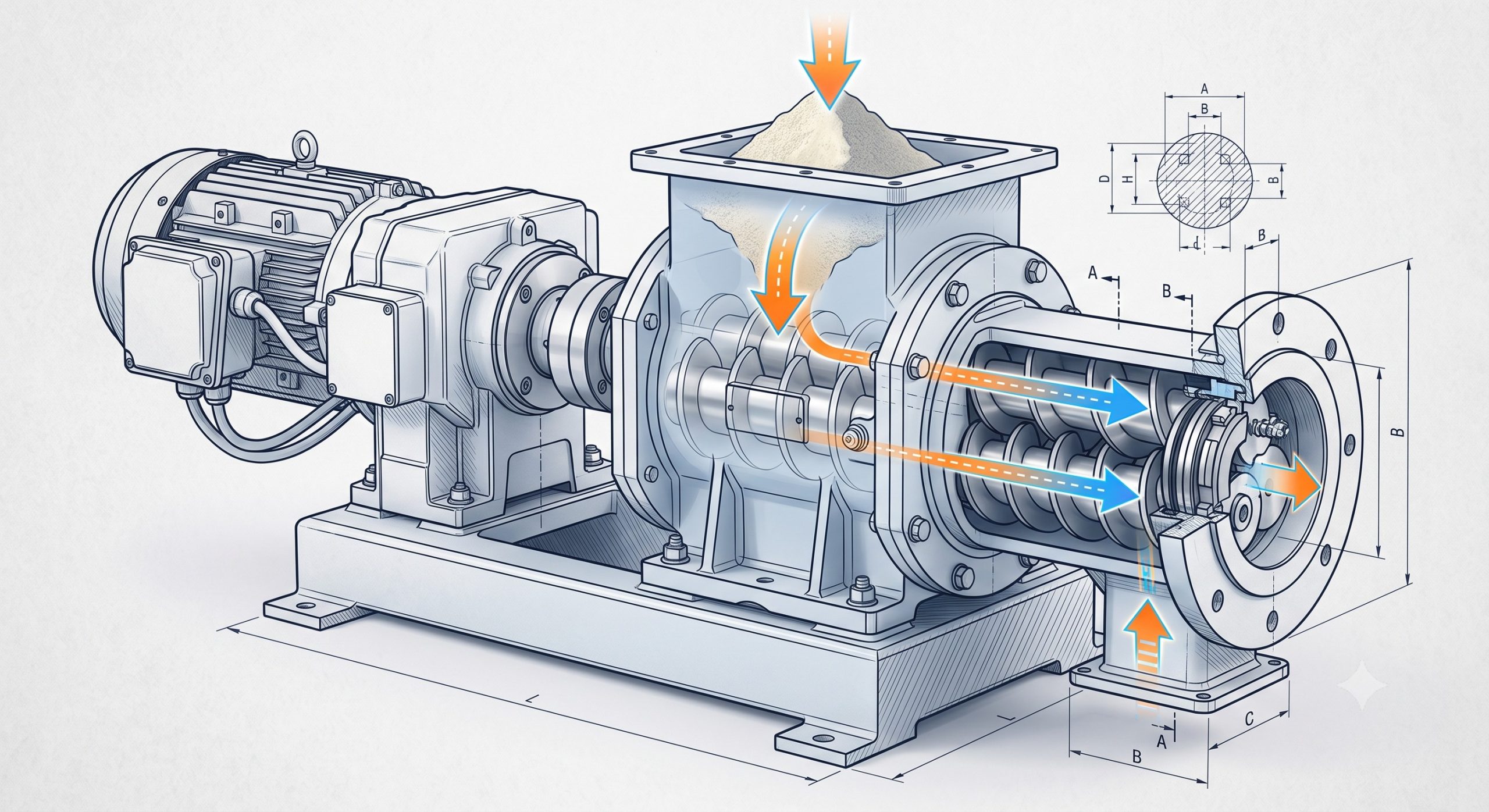

The feeder is equipped with heavy-duty, precision-machined twin screws. The screw profile and pitch are optimized for the specific material being handled, preventing bridging and ensuring consistent fill. Direct gearmotor options provide efficient, low-maintenance power transmission, while variable frequency drives (VFD) offer precise speed control for adjustable feed rates, typically ranging from 0.1 m3/h to over 50 m3/h, depending on the model and material characteristics.

Specification	Detail
Housing Materials	Cast Iron (GGG-40), Stainless Steel (SUS304, SUS316L), Carbon Steel
Screw & Rotor Finish	Precision machined, Ra ≤ 1.6 μm (Std) / Ra ≤ 0.8 μm (Sanitary)
Throughput Range	0.1 to 50+ m³/h (Dependent on material & screw size)
Screw Design	Intermeshing / Non-intermeshing, Custom Pitch
Drive Options	Direct Gearmotor with VFD, Motor Power from 0.55kW to 15kW
ATEX Certification	II 1/2 D c T100°C (Zone 20, 21, 22)
Wear Protection	Tungsten Carbide Coating, Ceramic Coating, Polymer Liners
Sealing System	Outboard Bearings with Double Lip Seal & Air Purge
Operating Temperature	-20°C to +80°C (Std) / Up to +250°C (High-Temp Option)

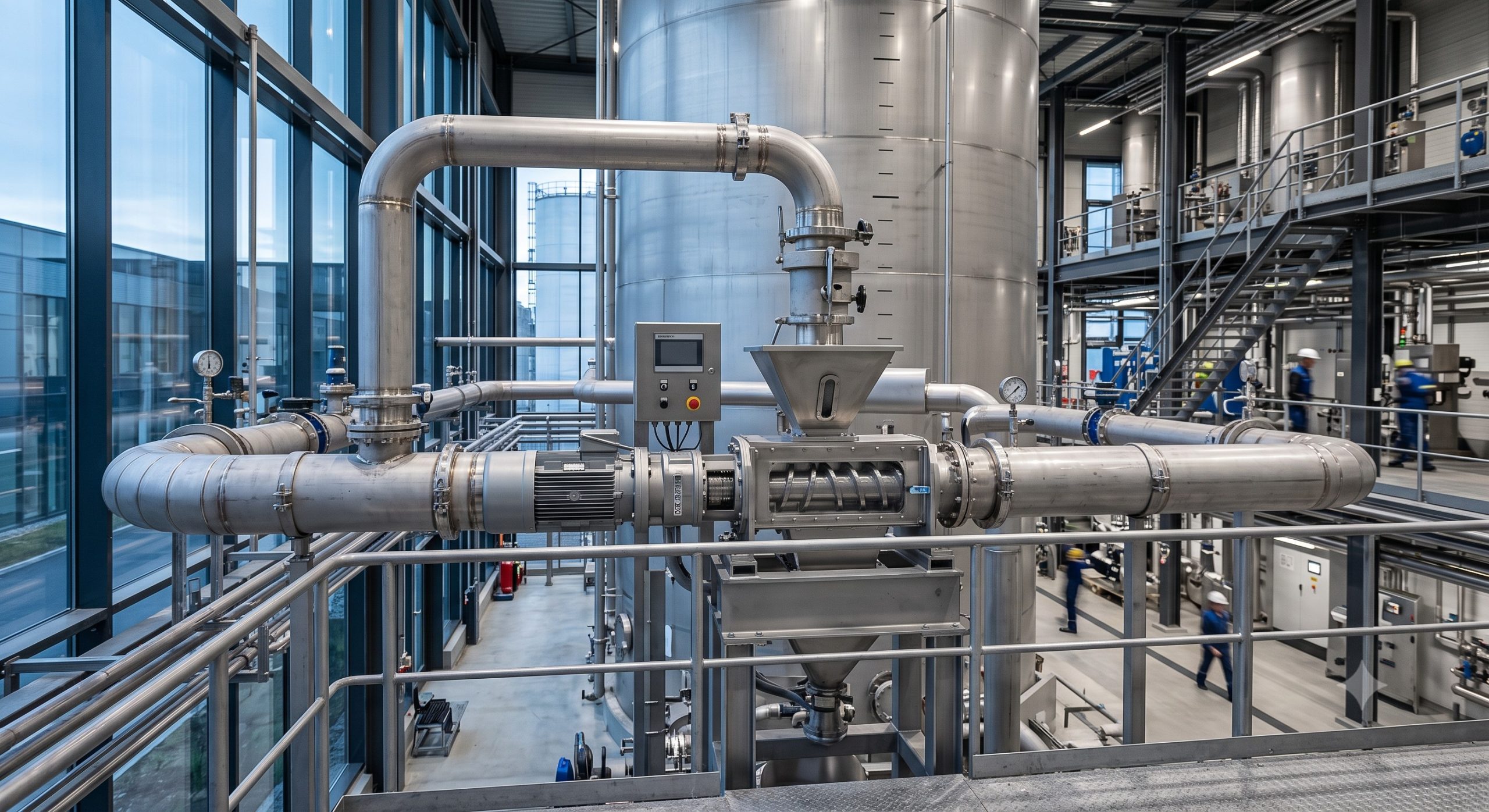

Heavy-Duty Application Scenarios

The Doebritz Twin Screw Powder Feeder is the preferred solution for a wide array of challenging bulk material handling tasks across various industries.

Hazardous Dust & Explosive Atmospheres

Perfectly suited for feeding combustible dusts such as carbon black, pharmaceutical compounds, and organic pigments in ATEX Zone 20/21 classified areas. The certified explosion-proof design, combined with minimal leakage, ensures safe and compliant operation.

Sanitary & Hygienic Processing

With its stainless steel construction, mirror-like internal finish (Ra ≤ 0.4 μm), and CIP/SIP compatibility, the feeder is an ideal choice for the food, dairy, and pharmaceutical industries. It ensures product purity, prevents cross-contamination, and meets stringent GMP and FDA standards.

Abrasive & Friable Material Handling

For materials like silicon powder, titanium dioxide, and lithium-ion battery materials, the feeder can be equipped with hard-wearing coatings such as tungsten carbide or ceramic, dramatically reducing wear and extending component life.

Global OEM Assurance & Logistics

Doebritz stands behind every product with a commitment to quality that spans the globe. Our ISO 9001 and ISO 14001 certified manufacturing processes ensure consistent quality. We leverage a robust global supply chain to offer competitive lead times and reliable delivery, regardless of your location. Our engineering team provides complete technical support, from initial sizing and selection to installation and after-sales service, ensuring that your Doebritz Twin Screw Powder Feeder operates at peak efficiency for years to come.

Frequently Asked Questions

Q: What materials can the Doebritz Twin Screw Powder Feeder handle?

A: The feeder is highly versatile and can handle a vast range of powders, granules, and flakes, from free-flowing materials like plastic pellets to cohesive and difficult-to-flow products like TiO2, carbon black, and pharmaceutical powders. Material characteristics are evaluated for optimal screw design and coating selection.

Q: Is this feeder suitable for loss-in-weight applications?

A: Yes, absolutely. The feeder’s rigid construction and consistent volumetric output make it an ideal foundation for a loss-in-weight feeding system. It can be easily integrated with load cells and a PLC for precise gravimetric control.

Q: What are the standard flange and connection types available?

A: Doebritz offers a comprehensive range of connection options. We can supply the feeder with standard DIN (e.g., HG20592), ANSI, or JIS flanges. We also offer custom inlet hoppers and outlet adapters to match your specific system requirements.

Q: What after-sales support does Doebritz provide?

A: We offer a complete after-sales package, including spare parts supply, on-site technical assistance, commissioning support, and preventive maintenance programs. Our goal is to maximize your equipment uptime and operational efficiency.
