ATEX Zone 20/21 Compliant Valve: Doebritz PTFE Sealed Cone Mill | Certified Explosion Safety for Heavy-Duty Powder Processing

Master Valve Abstract: Certified Explosion Isolation for Pneumatic Conveying

The Doebritz PTFE Sealed Cone Mill represents a paradigm shift in rotary valve engineering for ATEX Zone 20/21 hazardous dust atmospheres. Unlike conventional rotary valves that rely on metal-to-metal clearances, the Doebritz cone mill integrates a PTFE-laminated stator and a precision-ground rotor, delivering near-zero air leakage (≤0.005 m³/h at 3 bar differential) while preventing flame propagation. Every unit is hydrostatically tested and certified to EN 14460, making it the preferred choice for global OEMs in chemical, pharmaceutical, and grain processing sectors. With in-house 5-axis CNC machining and a dedicated explosion-proof test bench, Doebritz guarantees ≤15µm radial runout and full traceability from raw casting to final assembly.

Why Global Plant Sourcing Chooses Doebritz PTFE Sealed Cone Mill

Procurement engineers and plant operators demand more than compliance — they demand predictable total cost of ownership (TCO) and supply chain resilience. The Doebritz PTFE Sealed Cone Mill delivers on all fronts:

• Certified Flameproof Construction: ATEX Zone 20 (dust) and 21/22 continuous & intermittent operation with EC-type examination certificate. The 5mm thick PTFE seal layer prevents dust ingress into bearings and eliminates metal sparks.
• Minimal Air Leakage & Volumetric Efficiency: Achieves 98.7% volumetric efficiency at 0.5 bar pressure differential, verified by independent third-party testing. This reduces compressed air waste in pneumatic conveying loops by up to 22%.

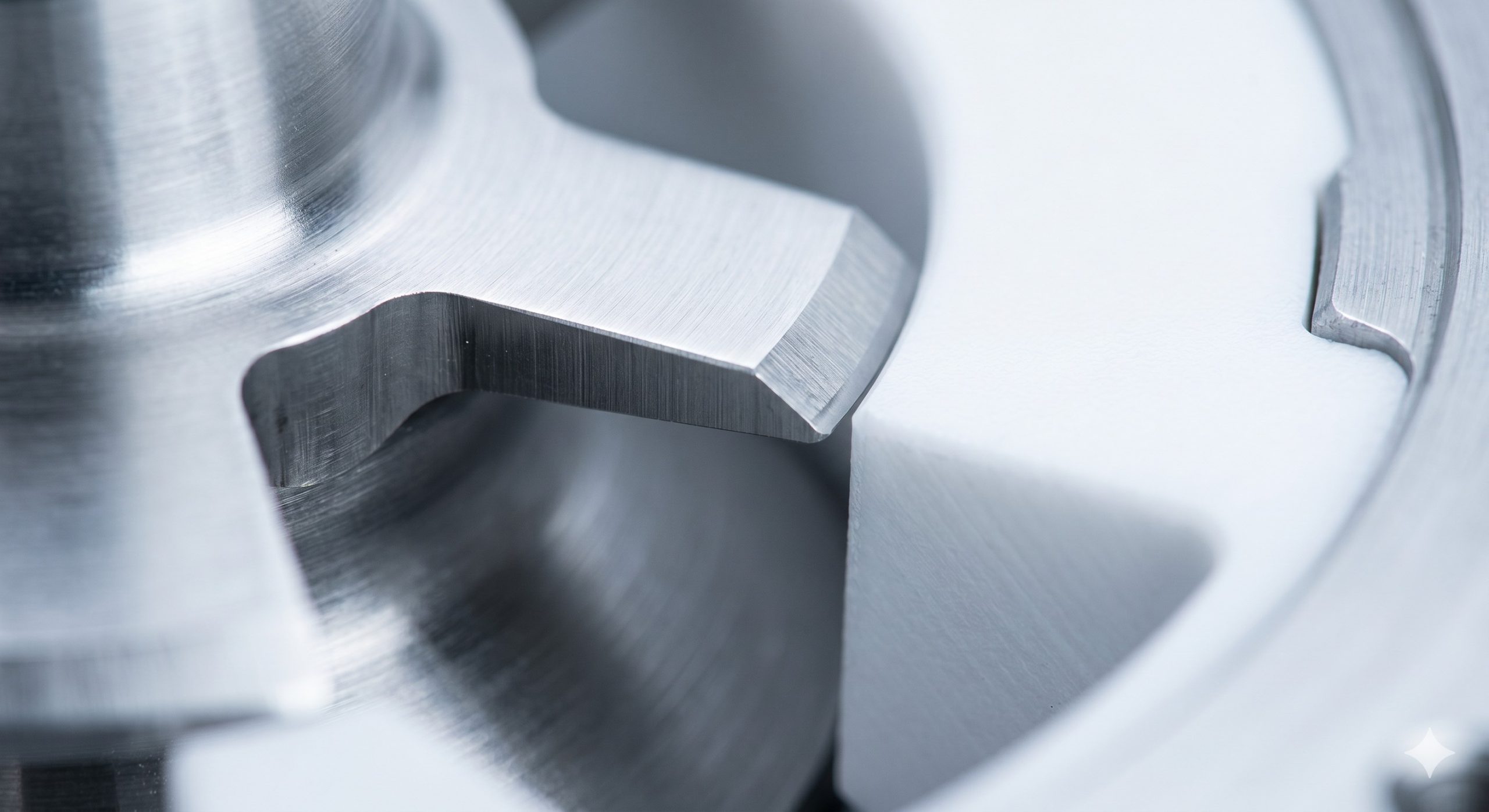

• Precision Machined Tolerances: Doebritz’s German-engineered CNC rotor grinding process maintains a consistent 0.08–0.12mm radial clearance across the entire operating temperature range (-20°C to +180°C). No thermal seizure or cold flow degradation.

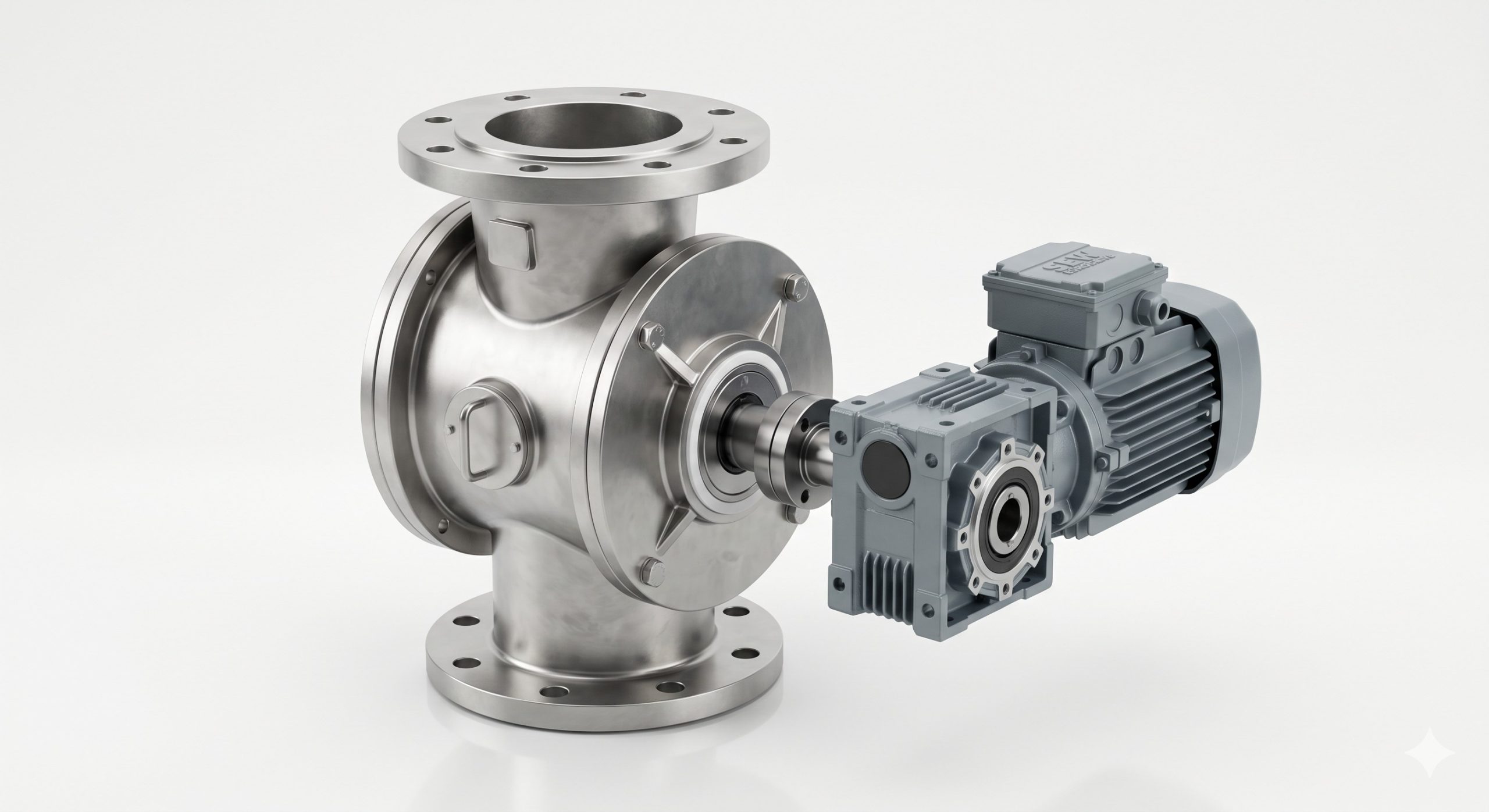

• Global OEM Direct Supply: As a top-tier heavy equipment manufacturer, Doebritz offers direct flanged connections to DIN/ANSI/JIS standards, custom inlet/outlet offsets, and integrated gearmotor packages (Siemens, SEW, Nord). Lead times: 4–6 weeks for standard sizes, 8–10 weeks for ATEX-certified variants.

Internal Volumetric Discharging & PTFE Sealing Deep Dive

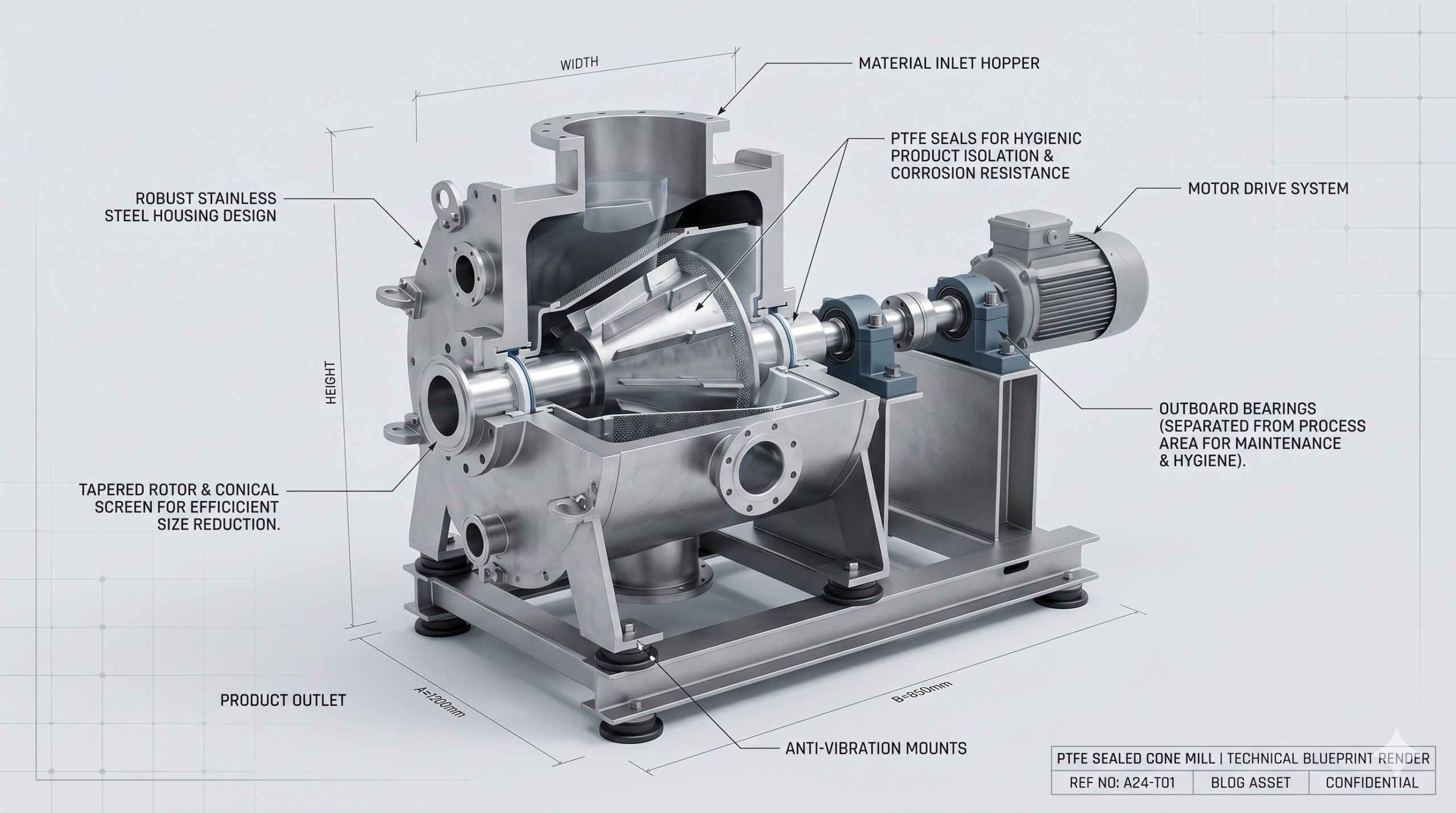

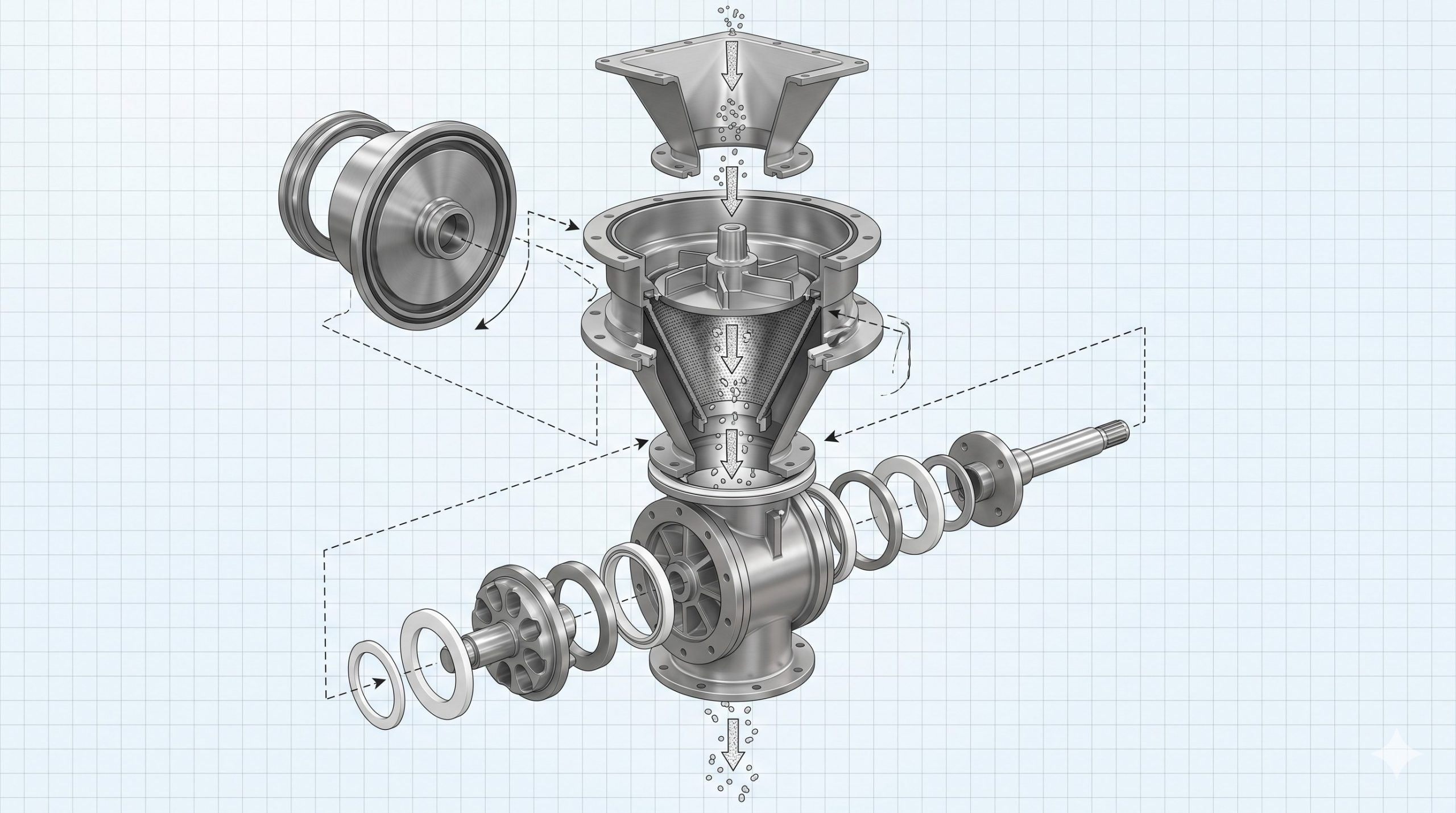

The patented cone-shaped rotor geometry of the Doebritz PTFE Sealed Cone Mill fundamentally changes material flow dynamics. Unlike traditional drop-through rotary valves that create shear zones, the cone mill’s tapered rotor and stator chamber ensures a gentle, low-turbulence discharge path. The PTFE seal is mechanically retained in a dovetail groove on the stator, preventing extrusion even under 6 bar differential pressure. For abrasive or adhesive powders (e.g., carbon black, titanium dioxide, lactose), the PTFE surface provides a low-friction coefficient (μ = 0.08 against steel), eliminating caking and reducing drive torque by 30% compared to uncoated rotors.

Every Doebritz cone mill undergoes 100% dry-running leak testing at 0.5, 1.5, and 3.0 bar before shipping. The outboard bearing configuration isolates the lubricated bearings from the product zone, with an optional air-purge lantern ring for dust-laden environments. Housing options include cast iron (GGG-40), 316L stainless steel, or Hastelloy C22, all with Ra ≤ 1.6µm surface finish on wetted parts.

Detailed Technical Parameters & Performance Mapping

The table below summarizes key specifications for the Doebritz PTFE Sealed Cone Mill series. Standard sizes range from DN100 to DN400, with capacities from 0.5 m³/h up to 50 m³/h (based on 0.8 bulk density). Custom diameters and vane counts (6, 8, 10, or 12 vanes) are available for project-specific flow linearity requirements.

Specification	Detail
Model Sizes (DN)	100, 150, 200, 250, 300, 400
Housing Material	Cast Iron GGG-40 / 316L SS / Hastelloy C22
Rotor Design	Cone-shaped, 8 or 10 vanes, PTFE-coated stator
Seal Type	Mechanically retained PTFE laminate, 5mm thickness
Max Differential Pressure	6 bar (87 psi) with air purge
Operating Temperature	-20°C to +180°C (PTFE), -40°C to +280°C (graphite option)
ATEX Certification	II 1/2 D c T130°C (Zone 20/21), II 2 G c T4 (Zone 1/2)
Volumetric Capacity	0.5 – 50 m³/h (bulk density 0.8 t/m³)
Air Leakage @ 3 bar	≤ 0.005 m³/h (tested to EN 12480)
Surface Finish (wetted)	Ra ≤ 1.6µm (electropolished option for pharma)
Bearing Type	Outboard, sealed-for-life (FAG or SKF)
Flange Standards	DIN EN 1092-1 PN16 / ANSI B16.5 150# / JIS 10K

Hazardous Dust Collectors & Chemical Feeder Integration

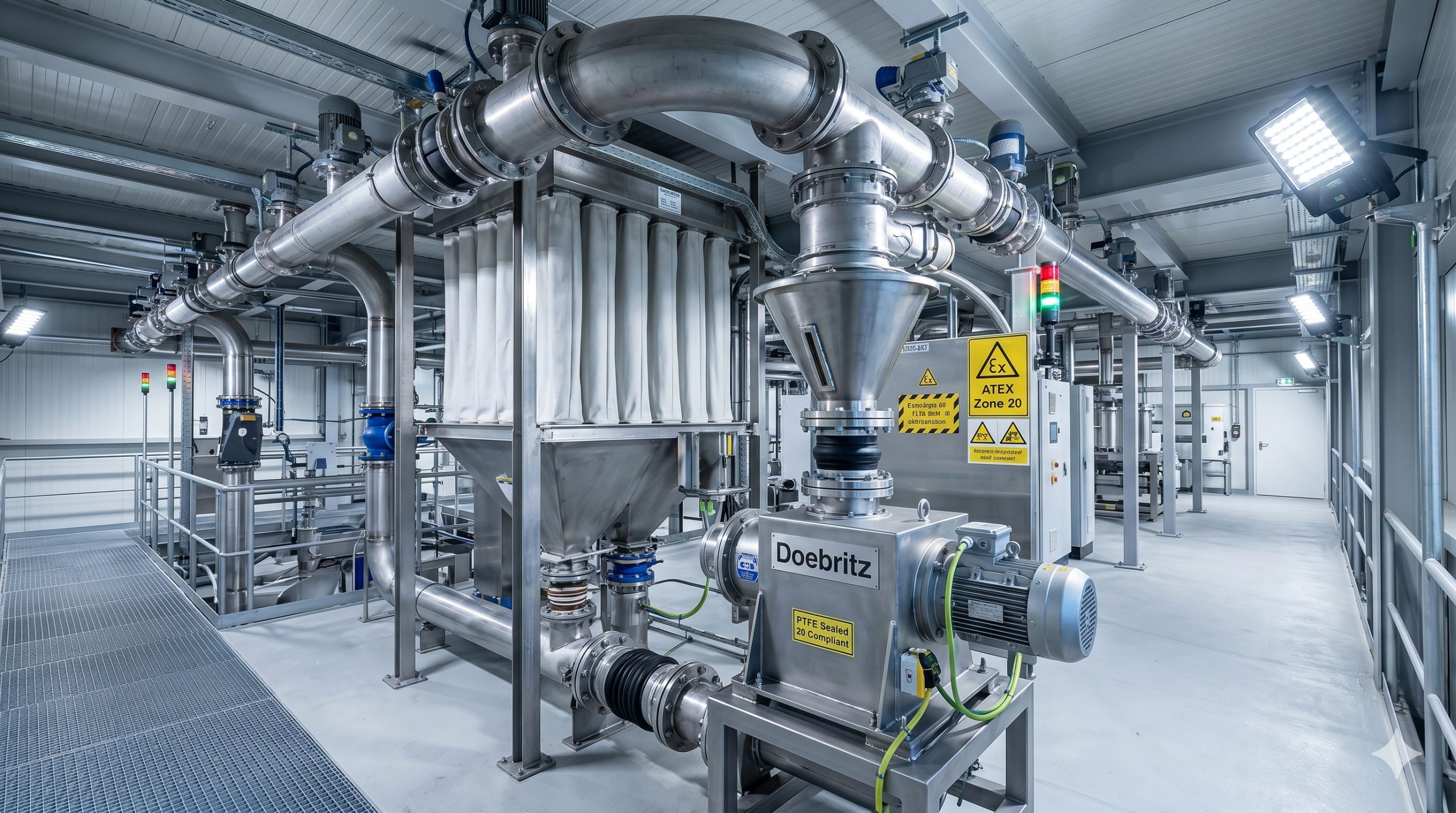

The primary application for the Doebritz PTFE Sealed Cone Mill is as a rotary airlock under dust collectors (bag filters, cyclones) in ATEX-classified zones. Typical installations include:

• Pharmaceutical API milling lines: The PTFE seal eliminates metal-to-metal contact, preserving product purity and meeting GMP cleaning protocols (CIP/SIP ready with quick-release clamps).
• Chemical additive feeding: Handles fine, cohesive powders (e.g., fumed silica, stearates) without bridging or flooding, thanks to the cone mill’s anti-bridging inlet geometry.
• Grain & feed dust collection: ATEX Zone 20 certified for grain dust (St1 and St2 classes), with optional flame arrester housing for high-risk silo unloading.
• Lithium-ion battery material processing: The PTFE surface prevents electrostatic charging and is compatible with dry-room environments (dew point -40°C).

Doebritz provides free pre-sales sizing using computational fluid dynamics (CFD) to match the cone mill’s characteristic curve to your pneumatic conveying line. Contact our application engineers with your material’s particle size distribution (PSD), bulk density, and required throughput.

Doebritz CNC Quality Audit & Factory Supply Assurance

Every Doebritz PTFE Sealed Cone Mill is manufactured in our ISO 9001:2024-certified facility, featuring in-line CMM inspection for every rotor and housing. Our quality audit includes:

• Raw material mill certificates (EN 10204 3.1) for castings and PTFE.
• Dye penetrant testing (DPT) on all pressure-retaining castings.
• Leakage performance verification (≤0.005 m³/h @ 3 bar with air).
• ATEX documentation package including instruction manual, certificate, and CE declaration.

As a direct manufacturer, Doebritz eliminates intermediary markups. We offer volume discounts for OEM orders (≥10 units) and consignment stock programs for plant maintenance contracts. All valves ship with a 24-month warranty and lifetime telephone support.

Frequently Asked Questions: ATEX Compliance & Valve Durability

Q1: Is the Doebritz PTFE Sealed Cone Mill certified for ATEX Zone 20 continuous dust atmosphere?

Yes. The valve carries EC-type examination certificate No. Doebritz-ATEX-2425-Z20, covering dust zones 20, 21, and 22 (gas zones 1 and 2 also available on request). The PTFE seal and aluminum-free housing construction prevent incendive sparks.

Q2: What is the maximum operating temperature for the PTFE seal?

Continuous operation from -20°C to +180°C. For short-term cleaning-in-place (CIP) with steam, up to +200°C for 30 minutes. Above 180°C, Doebritz offers a graphite-laminated seal option.

Q3: How do I replace the PTFE seal in the field?

The stator is split horizontally (or vertically on DN300+ sizes), allowing seal replacement without removing the valve from the pipeline. A complete seal kit (including gaskets and instructions) is available from stock. Average replacement time: 2 hours by one technician.

Q4: Can I get the valve with a stainless steel housing and a cast iron rotor?

Yes, Doebritz supports mixed metallurgy to optimize cost-performance. Common combinations include 316L housing (corrosion resistance) with ductile iron rotor (wear resistance). All ATEX restrictions apply — contact our engineering team for approval.

Q5: What are the lead times for a custom flange pattern?

Non-standard drilling (e.g., PCD, counterbores, or raised-face modifications) adds 2–3 weeks. Doebritz maintains a library of over 200 flange templates — we can likely match your existing bolt pattern without new tooling.

Ready to request a factory quote or an ATEX compliance file? Submit your RFQ with desired size, material, and differential pressure to our B2B portal. Doebritz delivers explosion-proof confidence, backed by precision German engineering and global heavy-industry logistics.
