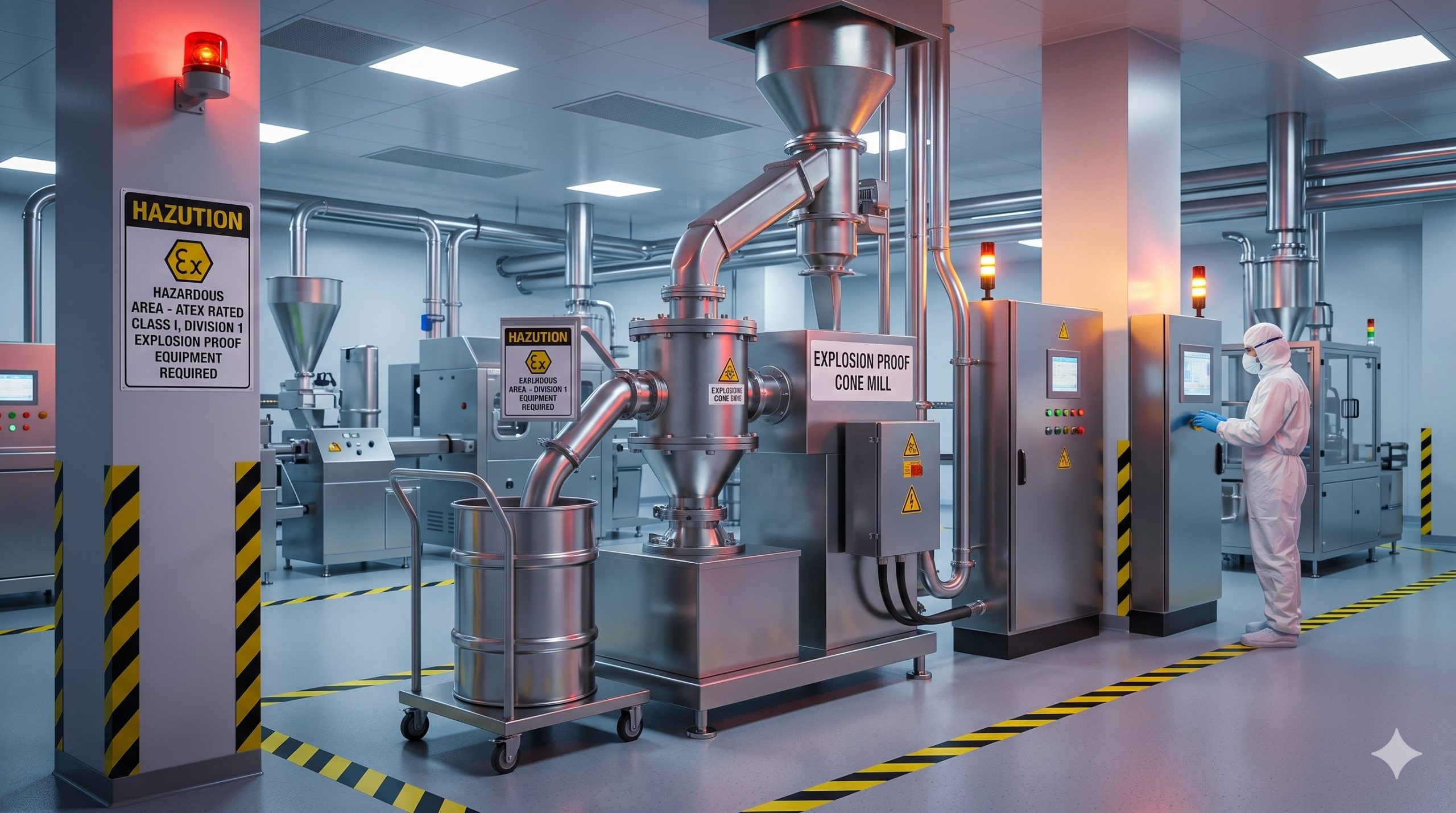

Precision Milling in Hazardous Environments: The Doebritz Explosion-proof Cone Mill

Engineered for the most demanding pharmaceutical, chemical, and food processing lines, the Doebritz Explosion-proof Cone Mill delivers consistent particle size reduction with absolute operator safety. Designed to operate within ATEX Zone 20, 21, and 22 classified dust explosion hazards, this mill integrates heavy-duty construction with micron-level screening accuracy. Unlike standard cone mills, the Doebritz unit features flameproof motor housing, earthing continuity, and a sealed milling chamber that contains potential ignition sources. For global OEMs and plant operators, this means zero compromise between throughput efficiency and explosion safety compliance.

Why Process Engineers Choose Doebritz Explosion-proof Cone Milling

Sourcing safety-critical milling equipment requires more than a datasheet. The Doebritz Explosion-proof Cone Mill delivers tangible advantages that protect both your capital investment and your production personnel.

• ATEX Certified Construction: Full certification for Zone 20 (continuous dust), Zone 21 (high probability dust), and Zone 22 (low probability dust). Includes certified motor, ingress protection IP65, and conductive gaskets.
• CNC Precision Machining: Rotor-to-screen clearance held to +/- 0.15mm. Achieves uniform particle distribution and eliminates hot spots that could ignite dust clouds.
• Minimal Air Leakage Design: Tandem shaft seals with inert gas purge option prevent fugitive dust escape. Maintains pressure differential up to 0.5 bar across the milling chamber.
• Heavy-Duty Metallurgy: Contact parts in 316L stainless steel as standard. Hardened impeller blades available for abrasive APIs or crystalline products.
• Global OEM Supply Capability: Doebritz supports multinational projects with consistent quality, full material traceability, and synchronized lead times across multiple units.

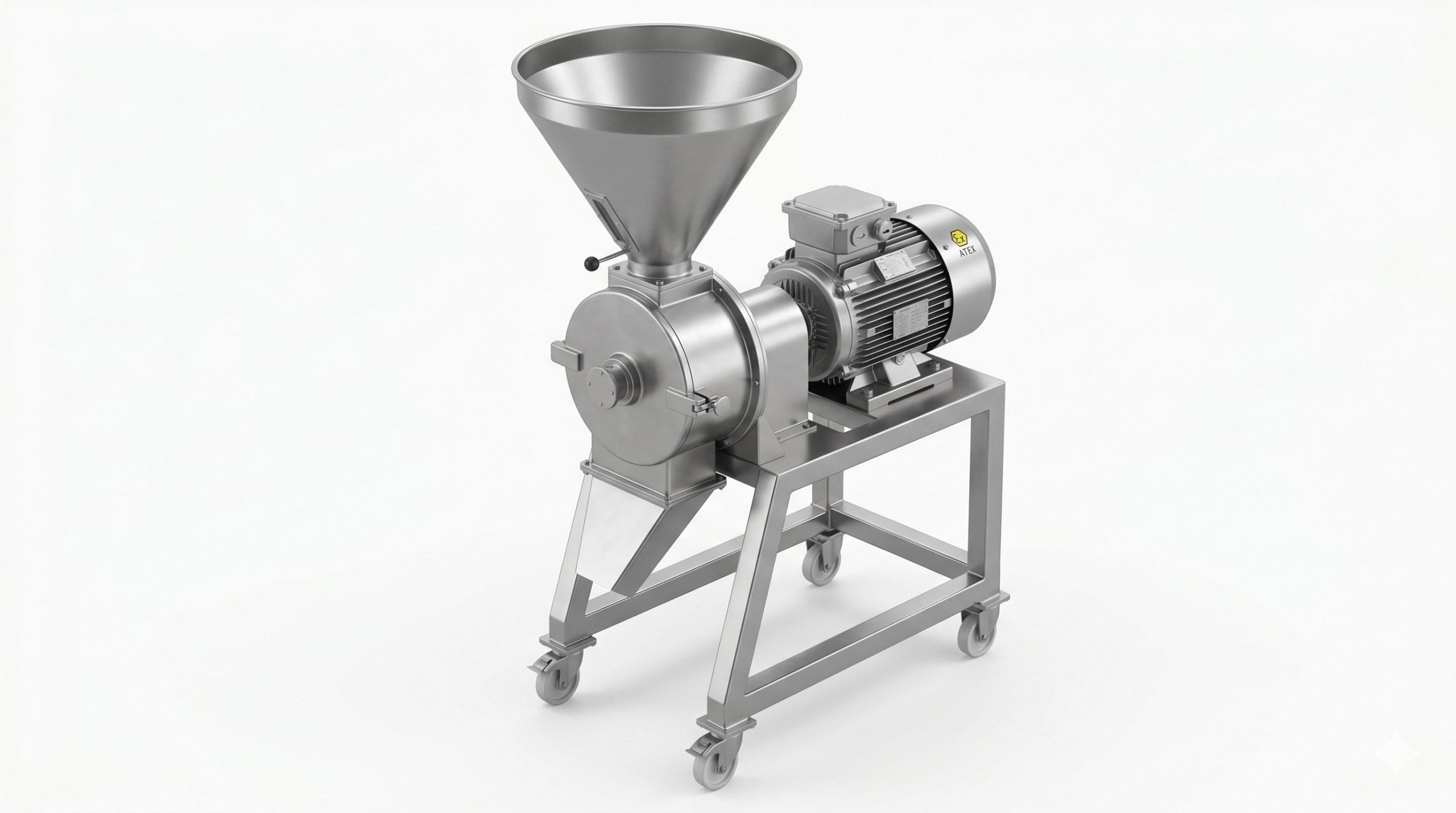

Explosion-Proof Engineering: Housing, Rotor & Sealing System

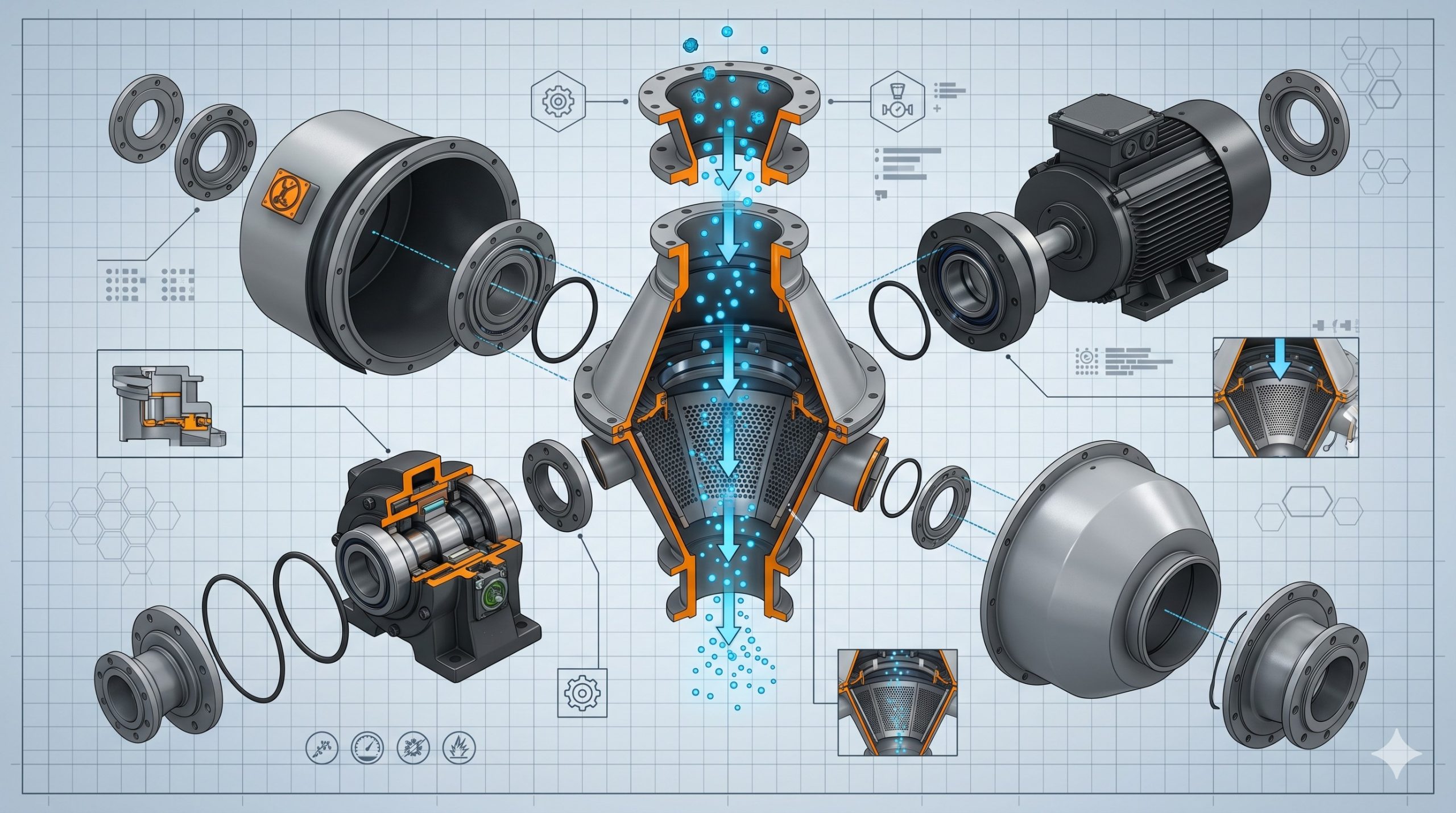

The Doebritz Explosion-proof Cone Mill is built around a monoblock housing machined from solid stainless steel, eliminating welded joints that could become failure points under explosion pressure. The conical screen bed is secured by a quick-release clamp system but locked with anti-vibration bolts, preventing any movement that could generate friction. The rotor assembly features a precision-balanced impeller running on outboard-mounted, sealed-for-life bearings. A double-acting carbon face seal with labyrinthine path ensures that no product enters the bearing housing, while a continuous air purge option further prevents dust ingress into the motor compartment. All electrical components, from the motor to the proximity sensors, are housed in flameproof enclosures certified to EN 60079-0. The result is a milling system that can safely process explosive powders including sugar, sulfur, pharmaceutical intermediates, and fine chemicals.

Technical Specifications – Doebritz Explosion-proof Cone Mill

Performance parameters validated under third-party witnessed testing. Custom configurations available for specific particle size targets or throughput requirements.

Specification	Detail
Mill Type	Explosion-proof Cone Mill – ATEX II 2D c T100°C
Contact Material	316L Stainless Steel, Ra < 0.8µm

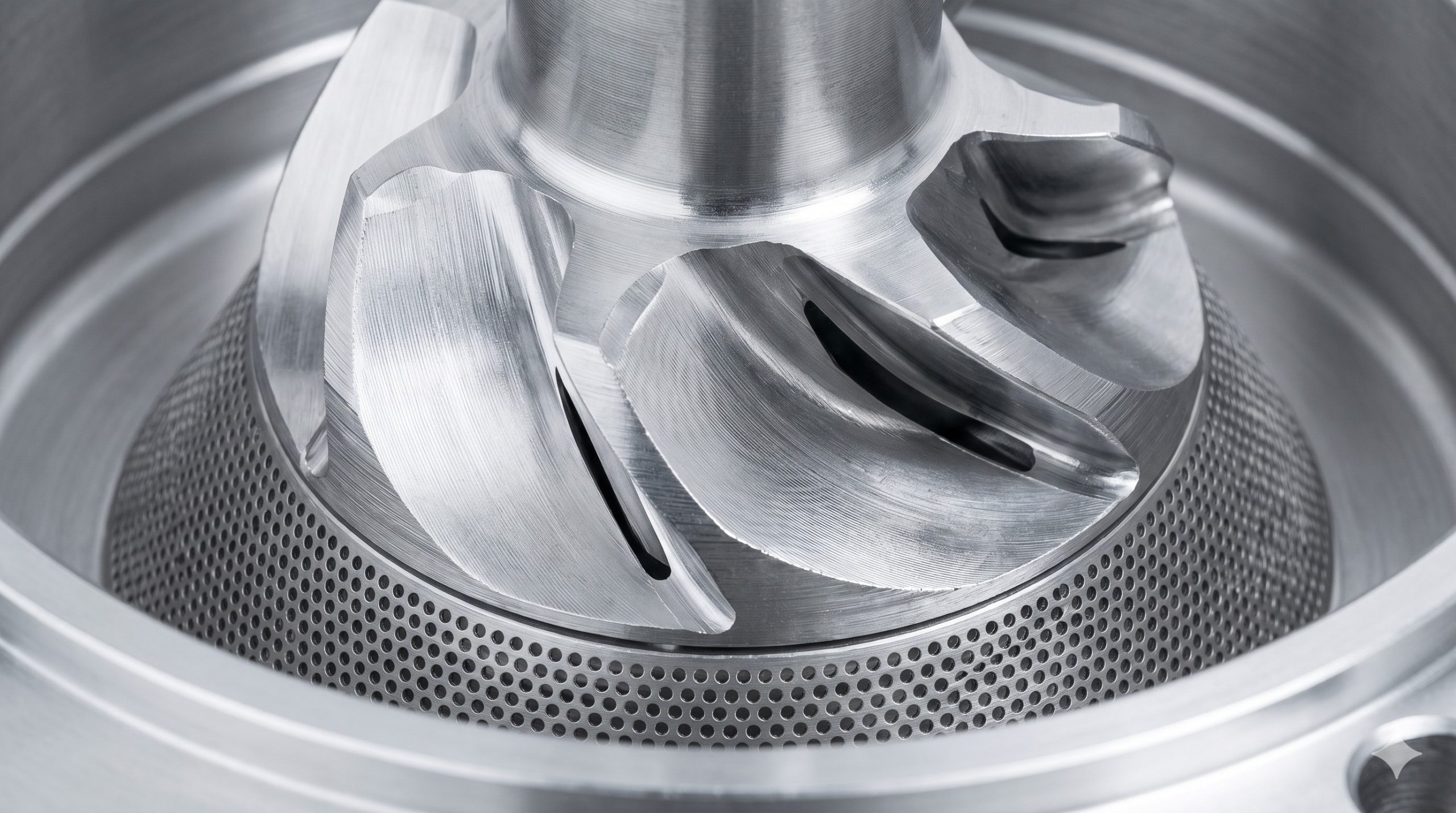

Rotor Design	4-Blade Impeller, CNC Machined to +/- 0.15mm Clearance
Screen Options	Perforated Stainless Steel: 0.5mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
Motor Power	4kW – 15kW, Flameproof (Ex d) Enclosure, IP65
Throughput Range	50 kg/h to 5000 kg/h (depending on material and screen size)
Max Operating Pressure	0.5 bar differential across mill chamber
Sealing System	Double Carbon Face Seal with Inert Gas Purge Port
Certifications	ATEX II 2D c T100°C, CE, UKCA
Flange Connections	DIN 2633 PN10 or ANSI 150# RF (Custom options available)
Overall Dimensions	Varies by model – from 600 x 500 x 900 mm to 1200 x 1000 x 1500 mm

Heavy-Duty Application Scenarios

The Doebritz Explosion-proof Cone Mill is specified for continuous operation in classified hazardous areas across multiple industries.

Pharmaceutical API Milling (Class I Div 1 equivalent)

Reduce active pharmaceutical ingredients from 5mm feed to D90 < 250µm without generating heat or creating dust clouds. CIP/SIP compatible designs available for multi-product facilities.

Chemical Powder Deagglomeration

Break down caked or compacted fine chemicals such as pigments, stabilizers, and catalysts. Explosion-proof design allows direct integration into solvent recovery lines.

Food Ingredient Sizing

Mill sugar, starch, spices, or protein powders in explosive dust atmospheres. FDA-compliant finishes and quick-clean design minimize downtime between batches.

Doebritz Global OEM Assurance

When you specify Doebritz, you are not buying a commodity valve or mill. You are partnering with a heavy-duty manufacturing group with ISO 9001:2015 certification, in-house CNC machining centers, and a dedicated ATEX compliance team. Every Explosion-proof Cone Mill is pressure tested, gap measured, and functionally run on a test stand before crating. Doebritz provides full documentation packages including declaration of conformity, certificate drawings, and material test reports (3.1). For global OEMs, we offer consistent multi-unit production, spare parts availability for 15+ years, and direct engineering support for system integration. Lead times from 4 to 6 weeks for standard configurations, with expedited options available.

Frequently Asked Questions

What is the maximum particle size the Doebritz Explosion-proof Cone Mill can accept?

Standard units accept feed material up to 20mm. For larger agglomerates, we offer a coarse sizing rotor that pre-breaks material before milling. Contact Doebritz engineering to discuss your specific feed characteristics.

Can I clean the mill without removing the screen?

Yes, the quick-release front door allows full access to the milling chamber and screen. For wet cleaning, all contact parts are removable without tools. The drive motor and electricals remain fully sealed, so washdown is safe even in Zone 21 areas.

Do you provide third-party witness testing for ATEX certification?

Absolutely. Doebritz can arrange witnessed pressure shock testing and temperature rise tests at accredited European labs. We supply full certification packages required for plant safety files and regulatory audits.

What is the typical lead time for a custom flanged outlet?

Standard DIN or ANSI flanges add 2 weeks. Custom drilling patterns or sanitary tri-clamp outlets add 3-4 weeks. All custom work is machined in our CNC workshop and carries the same Doebritz warranty as standard parts.

How does the Doebritz explosion-proof design differ from standard dust-ignition proof motors?

Standard dust-ignition proof motors only prevent external dust entry. Doebritz ATEX-certified design contains any internal explosion, prevents flame propagation, and maintains a surface temperature below the auto-ignition point of the dust cloud. The entire mill, not just the motor, is certified as a complete assembly.
