Product Summary

Doebritz introduces the drop-through rotary valve slimline (DBR-1237), a high-performance airlock feeder engineered for gravity discharge and light-duty pneumatic conveying. This compact quick-release rotary valve delivers reliable shut-off and minimal air leakage, making it an ideal choice for hygienic and industrial applications where space is at a premium. With a precision-machined rotor and housing clearance of just 0.1 to 0.2 mm, the DBR-1237 reduces air bypass, ensuring consistent material flow and energy efficiency. It is available in SUS304 or SUS316L stainless steel with mirror or Ra≤0.8μm internal finishes to support food, pharmaceutical, and chemical processing. The slimline design allows for easy integration into tight spaces, while the optional ATEX certification for Zone 20/21/22 makes it a safe choice for explosive dust environments.

Why Plant Sourcing Chooses Doebritz Drop-Through Rotary Valve Slimline

• Minimal Air Leakage: The tight 0.1-0.2mm gap between the rotor and housing drastically reduces pressure loss and air bypass, optimizing pneumatic conveying performance and reducing operational costs.
• Explosion-Proof Certified: ATEX Zone 20/21/22 compliance ensures safe operation in hazardous areas. Available with explosion-proof motors and pressure ratings up to 16 bar for enhanced safety.
• Quick-Clean Demountable Design: The quick-release structure allows for rapid disassembly without specialized tools, facilitating manual cleaning, CIP, or WIP procedures. This design minimizes downtime and prevents cross-contamination in sanitary processes.
• Superior Wear & Corrosion Resistance: Choose from a wide range of materials, including SUS304, SUS316L, carbon steel with coatings, or polymer linings like PTFE and PE. Internal surfaces can be polished to Ra≤0.4μm or coated with tungsten carbide or ceramic for extreme abrasion resistance.
• Global OEM Supply Capability: Doebritz leverages over 15 years of CNC precision machining expertise to deliver consistent, high-quality components. As a direct manufacturer, we support custom flanges (DIN/ANSI), gearmotor options, and full integration with PLC/automation systems.

Housing & Rotor Engineering

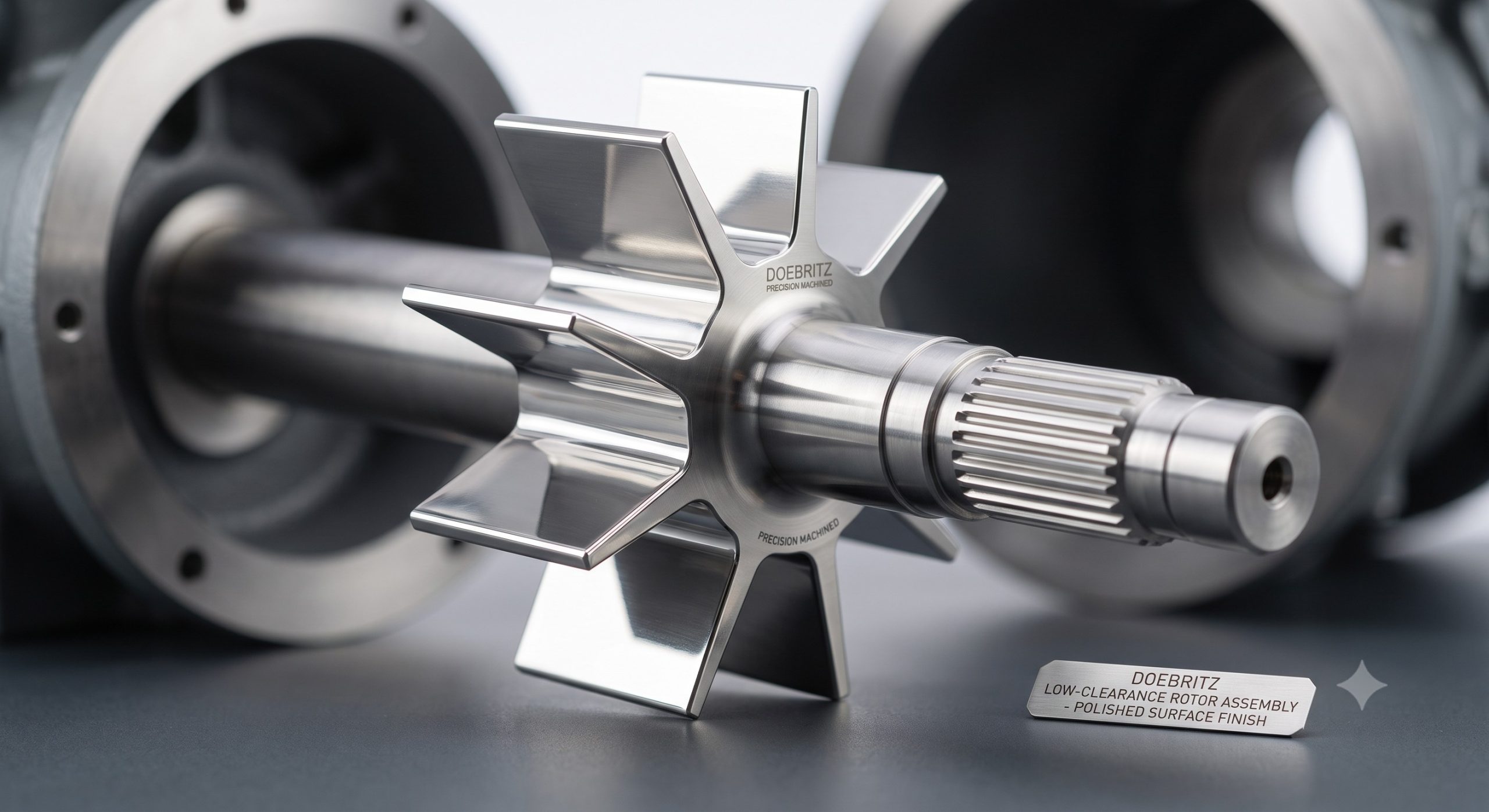

The drop-through rotary valve slimline features a robust, horizontally-split housing design that is precision-machined from high-grade cast iron, SUS304, or SUS316L. The straight-through, drop-through geometry allows for gravity-fed material to pass directly through the valve without obstruction, reducing the risk of jamming and ensuring consistent volumetric fill. The rotor is dynamically balanced and features multiple vanes (typically 6, 8, or 10) to create an effective airlock seal. The external mounting arrangement separates bearings from the material flow path, preventing contamination and extending bearing life. For high-temperature applications (up to 120°C), an optional water-cooled jacket can be integrated to maintain operational stability. All wetted parts are meticulously finished to meet sanitary standards, with surface roughness options ranging from machined (<0.8μm) to mirror finish. Doebritz's state-of-the-art CNC machining centers guarantee precise rotor-to-housing clearances for optimal air sealing and extended service life.

Technical Specifications

Specification	Detail
Model	DBR-1237 (Drop-Through Rotary Valve Slimline)
Body Material	SUS304 / SUS316L / Carbon Steel (with or without coating)
Rotor Design	6, 8, or 10 Vanes (Open or Closed)
Clearance (Rotor to Housing)	0.1 – 0.2 mm
Inlet/Outlet Flanges	DN50, DN100, DN150, DN200, DN300, DN350 (HG20592 standard; DIN/ANSI optional)
Shaft Seal	Lip Seal with Air Purge / Packing Seal
Operating Pressure	Standard: -1.0 to +1.0 bar; ATEX: Up to 16 bar
Temperature Range	Ambient: -15°C to 60°C; Material: 0°C to 120°C
Drive Options	Direct Drive / Gearmotor; VFD Speed Control
Surface Finish (Internal)	Mirror, Ra≤0.4/0.8/1.6μm, or WC/Ceramic/Polymer Coating
ATEX Certification	Zone 20/21/22 (Optional)
Sanitary Standards	Suitable for Class C/D, 10W, 30W Cleanrooms (GMP Compliant)
Certifications	CE, TÜV, Statement

Heavy-Duty Application Scenarios

Food & Pharmaceutical Processing

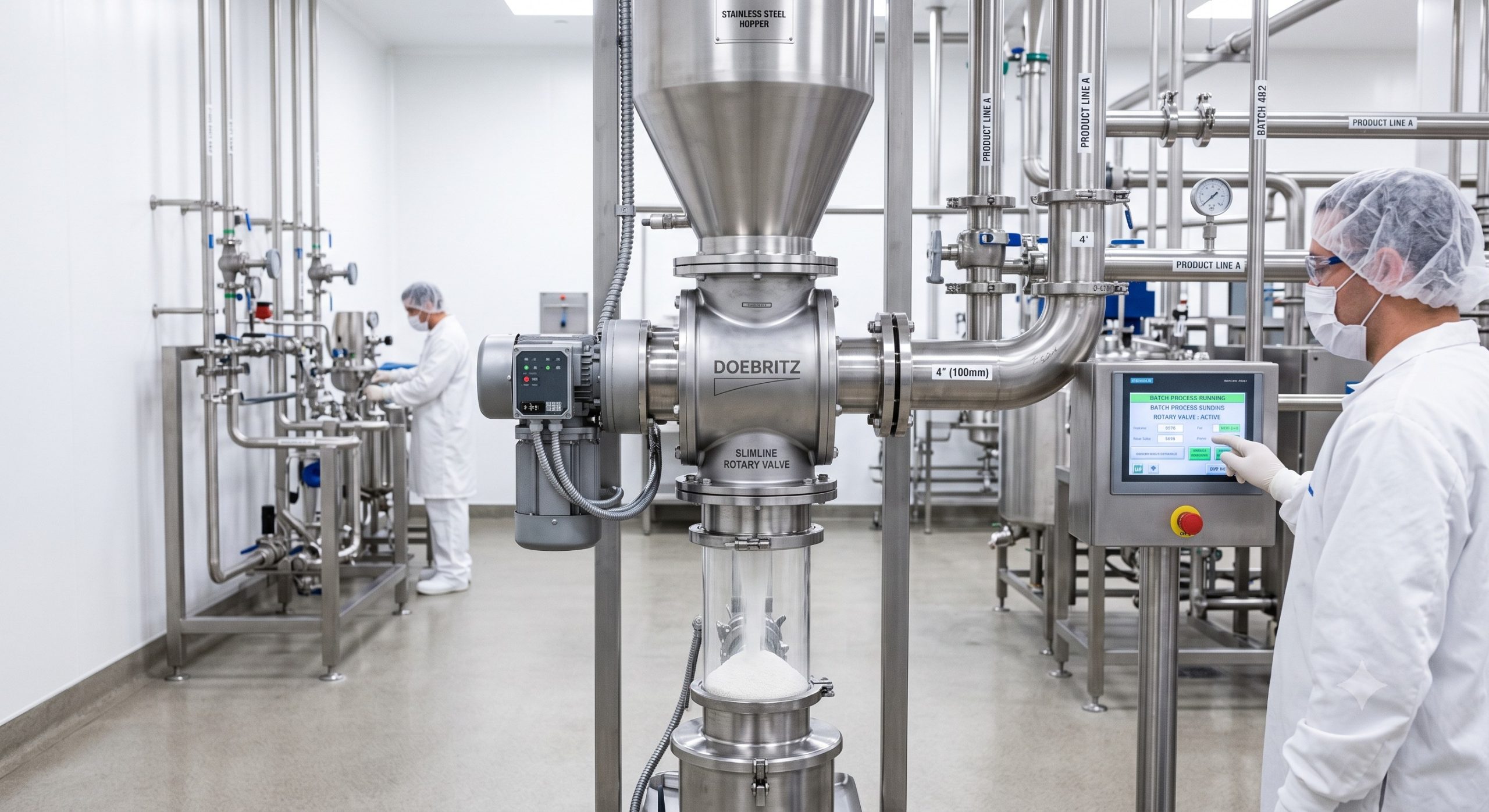

Doebritz’s drop-through rotary valve slimline is ideal for handling food powders like flour, milk powder, sugar, coffee, spices, and pharmaceutical ingredients such as APIs, vitamins, and excipients. The sanitary design with crevice-free geometry supports GMP-compliant production and facilitates easy validation for cleanroom environments (Class C/D, 10W/30W).

Chemical & Plastics Industry

Engineered to withstand the rigors of chemical processing, the DBR-1237 handles abrasive and corrosive materials like carbon black, titanium dioxide, calcium carbonate, and polymers (PE/PP pellets). The optional tungsten carbide or ceramic coatings significantly enhance component life, reducing maintenance frequency and total cost of ownership.

Minerals & Building Materials

For the cement, lime, and mining sectors, the drop-through rotary valve slimline offers robust construction to manage heavy, abrasive materials. The ATEX-certified version provides essential explosion protection when conveying combustible dusts like coal, petroleum coke, or biomass.

Global OEM Assurance

As a trusted supplier to global industries, Doebritz provides comprehensive support from design through to after-sales service. Our manufacturing facilities are ISO-certified, and our products bear CE, TÜV, and Statement certifications, ensuring compliance with international safety and quality standards. We offer full customization of valve material, drives, control systems, and sealing configurations. With a dedicated engineering team and responsive logistics, we deliver reliable, high-performance solutions that optimize your bulk material handling processes. Whether you require a single unit for a pilot plant or a bulk order for a new facility, Doebritz guarantees consistent quality, on-time delivery, and competitive OEM pricing.

Frequently Asked Questions

What is the maximum pressure differential for the Doebritz drop-through rotary valve slimline?

The standard version is suitable for pressures up to 1.0 bar. For high-pressure applications, the ATEX-certified configuration is pressure-rated up to 16 bar, making it suitable for dense-phase pneumatic conveying systems.

Can the valve be cleaned in place (CIP)?

Yes, the DBR-1237 is designed with a quick-release mechanism for easy access and is compatible with CIP and WIP cleaning protocols. After a CIP cycle, a manual visual inspection is recommended for critical pharmaceutical applications.

What materials is the valve available in?

Doebritz offers the DBR-1237 in a wide range of materials, including stainless steel (SUS304, SUS316L), carbon steel (painted or nickel-plated), and various coated or lined options. Contact our technical sales team to discuss compatibility with your specific material and environment.

How do I select the right size for my application?

Selection is based on your required throughput, material density, and system pressure. Doebritz provides free sizing and selection services. Please provide your process parameters, and our application engineers will recommend the optimal configuration, inlet/outlet connections, and rotor speed.

What is the lead time for a customized Doebritz rotary valve?

Standard lead times vary from 4-6 weeks, depending on the complexity of the configuration and material availability. Expedited options are available for urgent projects.
